0472192001 - Molex

Description: 1.10mm Pitch microSD Card Connector, Hinge Type, Lead-Free

Download 0472192001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

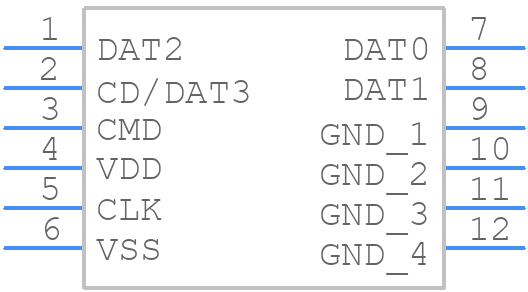

0472192001 - Molex - PCB symbol
click to zoom
PCB Footprints
0472192001 - Molex PCB footprint - Other - Other - 0472192001-3
click to zoom
3D Models
0472192001 - Molex - 3D model - Other - 0472192001-3
click to zoom

0472192001 Details

  • Manufacturer Part Number:

    0472192001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3
