Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 0473080001
- Part Number 0473080001
- Manufacturer Molex
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - 0473080001-2
- Released Date Jan 21, 2021
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
0473080001 Details
-
Manufacturer Part Number:
0473080001
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT AND HALOGEN FREE
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Molex
-
YTEOL:
0
-
Body/Shell Style:
SOCKET
0473080001 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
-
Yes, the 0473080001 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
-
The operating temperature range for the 0473080001 connector is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 0473080001 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
-
No, the 0473080001 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
0473080001 Overview

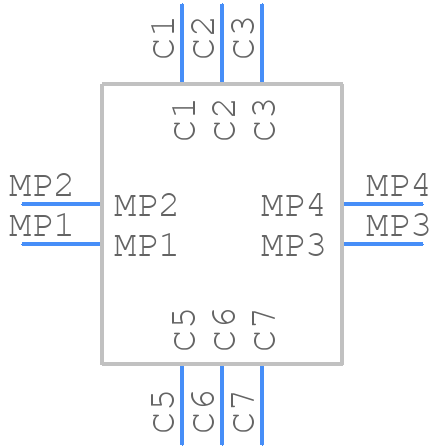

Use the download button to access the 0473080001 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 04730,
or try a keyword search, such as Headers and Edge Type Connectors
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
