- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 0473370001
- Part Number 0473370001
- Manufacturer Molex
- Pin Count 60
- Part Category Connector
- Package Category Other

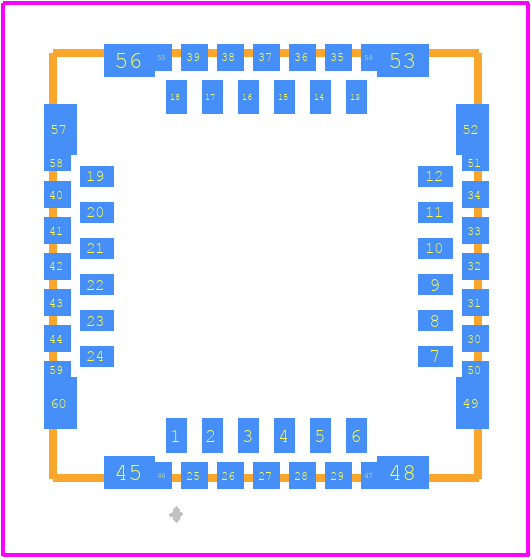

- Footprint Name Other - 0473370001-1
- Released Date Oct 5, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
0473370001 Details
-
Manufacturer Part Number:
0473370001
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Molex
-
YTEOL:
0
-
Device Socket Type:
IC SOCKET
0473370001 Frequently Asked Questions (FAQs)
-
The recommended mating cycle for the 0473370001 connector is 50 cycles. However, it's essential to note that the actual mating cycle may vary depending on the application, environment, and usage.
-
While the 0473370001 connector is designed to be robust, it's not specifically designed for high-vibration applications. If your application involves high vibrations, it's recommended to consult with a Molex representative or consider a different connector series that's specifically designed for high-vibration environments.
-
The 0473370001 connector is rated for operating temperatures between -40°C to 105°C. However, it's essential to note that the connector's performance and lifespan may be affected at extreme temperatures. If your application involves high temperatures, it's recommended to consult with a Molex representative or consider a different connector series that's specifically designed for high-temperature environments.
-
The recommended torque for the screw locks on the 0473370001 connector is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure proper mating and to prevent damage to the connector.
-
Yes, the 0473370001 connector is designed to be compatible with automated assembly processes. However, it's recommended to consult with a Molex representative to ensure that the connector meets the specific requirements of your automated assembly process.
Trust Checks
Expert Contribution
System Verified
Community Approved
0473370001 Overview
Use the download button to access the 0473370001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04733,
or try a keyword search, such as Sockets and Chip Carriers
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
