0483920003 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

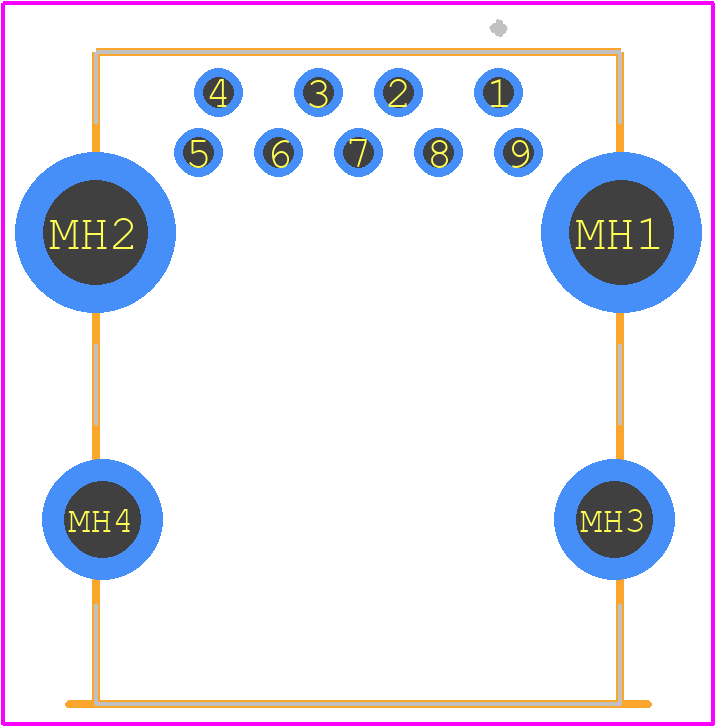

0483920003 - Molex PCB footprint - Other - Other - 0483920003-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0483920003
Part Number 0483920003
Manufacturer Molex
Pin Count 13
Part Category Connector
Package Category Other
Footprint Name Other - 0483920003-6
Released Date May 10, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

0483920003 Details

Manufacturer Part Number:
0483920003
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Molex
YTEOL:
0
Connector Type:
USB CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Material:
NOT SPECIFIED

0483920003 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
Yes, the 0483920003 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The 0483920003 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
The 0483920003 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-20 AWG.

Trust Checks

Expert Contribution

System Verified

Community Approved

0483920003 Overview

Use the download button to access the 0483920003 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 04839, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
