04A-B01 - Grayhill

04A-B01 Details

• Manufacturer Part Number:

  04A-B01

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.33

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Grayhill Inc

• Actuator Color:

  BLACK

• Actuator Length:

  0.469 inch

• Actuator Material:

  ACRYLONITRILE BUTADIENE STYRENE

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  21.59 mm

• Body Color:

  BLACK

• Body Height:

  13.97 mm

• Body Length or Diameter:

  21.59 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Rating R Load:

  0.125A@220VAC

• Contact Current(AC)-Max:

  0.125 A

• Contact Current(DC)-Max:

  0.25 A

• Contact (DC) Max Rating R Load:

  .25A@115VDC

• Contact Function:

  OFF-ON

• Contact Resistance:

  0.025 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Contact Voltage(AC)-Max:

  220 V

• Contact Voltage(DC)-Max:

  115 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  500000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  POLYESTER

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

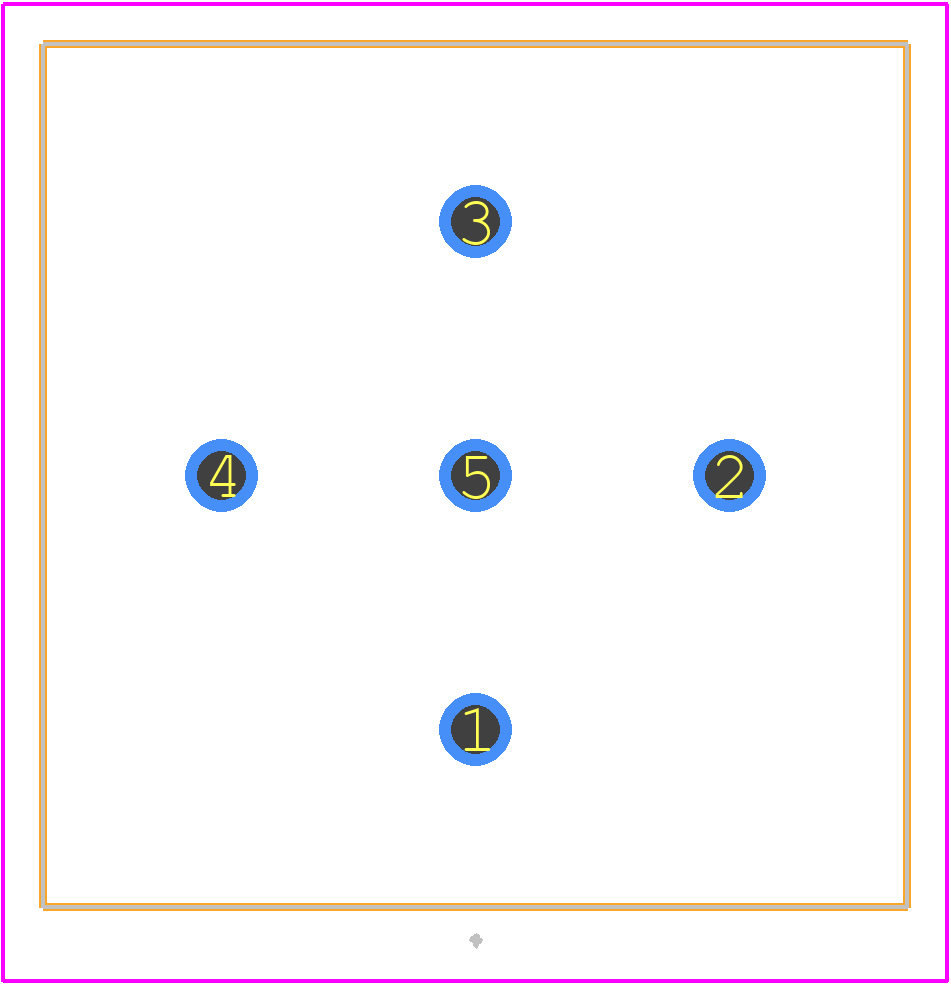

• PCB Hole Count:

  5

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  4PST

• Switch Type:

  JOYSTICK SWITCH

• Terminal Finish:

  GOLD

• Terminal Length:

  0.15 inch

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
