Part Image

0520441245 - Molex

Description: 12 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle

Download 0520441245 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0520441245 - Molex - PCB symbol
click to zoom
PCB Footprints

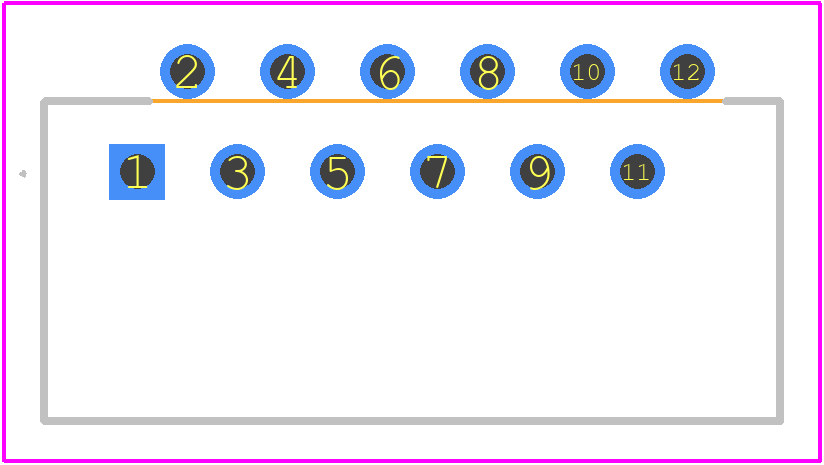

0520441245 - Molex PCB footprint - Other - Other - 0520441245-2
click to zoom
3D Models
0520441245 - Molex - 3D model - Other - 0520441245-2
click to zoom

0520441245 Details

  • Manufacturer Part Number:

    0520441245

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.049 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

0520441245 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0520441245 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0520441245 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and securing procedures to ensure the connector remains secure and functional.
  • The maximum operating temperature for the 0520441245 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the 0520441245 connector is designed to be compatible with automated assembly processes, including pick-and-place machines and wire termination equipment.
  • The recommended torque for the screw locks on the 0520441245 connector is 0.5-1.5 Nm (0.37-1.06 lb-in). Over-torquing may damage the connector or the PCB.
