0524352833 footprint, schematic symbol and 3D model by Molex

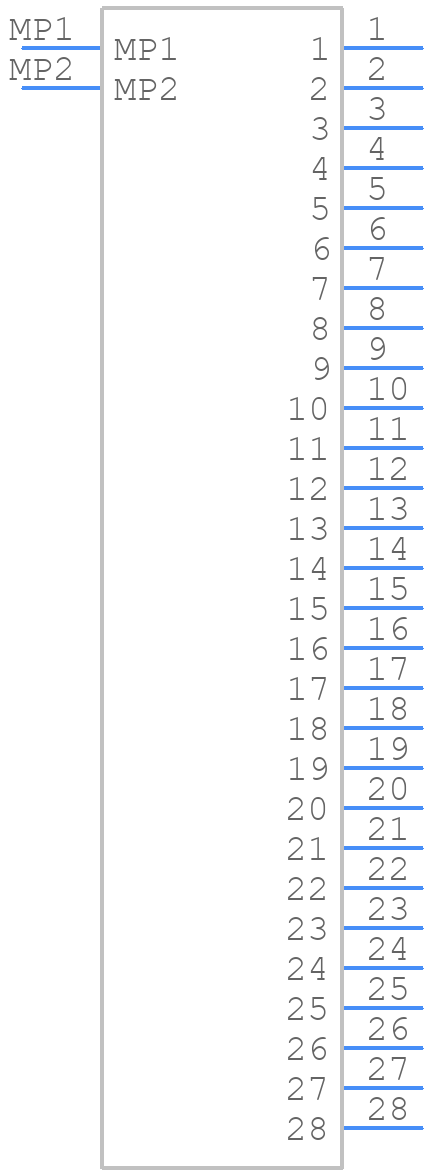

Symbol

click to zoom

PCB Footprints

0524352833 - Molex PCB footprint - Other - Other - 0524352833-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0524352833
Part Number 0524352833
Manufacturer Molex
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - 0524352833-3
Released Date Jun 13, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

0524352833 Details

Manufacturer Part Number:
0524352833
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS AND REACH COMPLIANT
Country Of Origin:
Japan, Mainland China
ECCN Code:
EAR99
Manufacturer:
Molex
YTEOL:
0
Additional Feature:
EASY-ON, POLARIZED
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin/Silver/Bismuth (Sn/Ag/Bi)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
Terminal Pitch:
0.5 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
28
UL Flammability Code:
94V-0

0524352833 Frequently Asked Questions (FAQs)

The recommended mating sequence for the 0524352833 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the 0524352833 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
The maximum cable bend radius for the 0524352833 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
Yes, the 0524352833 connector is designed for automated assembly processes. Molex provides guidance on automated assembly and can provide custom solutions for high-volume production.
The operating temperature range for the 0524352833 connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings and derating factors.

Trust Checks

Expert Contribution

System Verified

Community Approved

0524352833 Overview

Use the download button to access the 0524352833 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 05243, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
