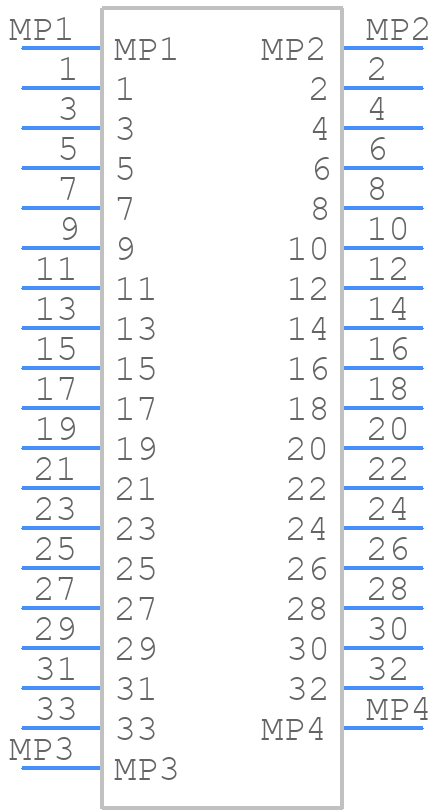

0525593353 - Molex

0525593353 Details

• Manufacturer Part Number:

  0525593353

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS AND REACH COMPLIANT

• Country Of Origin:

  Japan, Malaysia, South Korea

• ECCN Code:

  EAR99

• Factory Lead Time:

  22 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7.5

• Additional Feature:

  EASY-ON

• Board Mounting Option:

  FITTING NAIL

• Body Breadth:

  0.091 inch

• Body Depth:

  0.154 inch

• Body Length:

  0.874 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  350VAC V

• Durability:

  20 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  50000000 Ω

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.020 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8 mm

• Plating Thickness:

  4u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  1 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  33

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  ZIF N
