Littelfuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce thermal resistance, and prevent electrical noise.
To select the correct fuse, consider factors such as the maximum voltage, current, and power rating of your circuit. You should also consider the fuse's interrupting rating, melting I²t, and cold resistance. Littelfuse provides a fuse selection guide or online tools to help with this process.
The response time of the 0526030.UXTHP fuse is typically in the range of 1-10 milliseconds, depending on the fault current and voltage. This information may not be explicitly stated in the datasheet, but it can be obtained from Littelfuse's application notes or by contacting their technical support.
The 0526030.UXTHP fuse is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If your application requires operation above 125°C, you should consult with Littelfuse's technical support to determine the fuse's suitability and potential derating requirements.
Proper installation and securing of the fuse on the PCB is crucial to ensure reliable operation. Follow Littelfuse's recommended installation procedures, and use the correct soldering techniques and materials to prevent thermal stress and ensure a secure connection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
0526030.UXTHP Overview

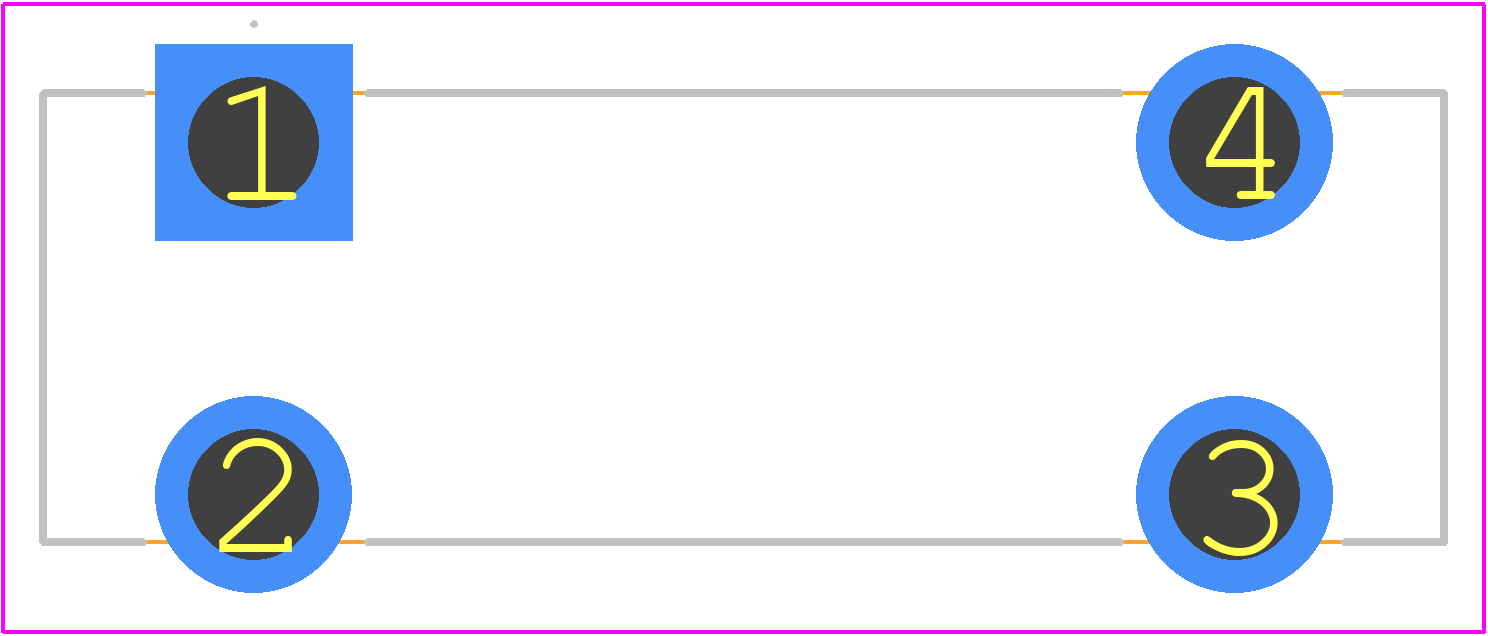

Use the download button to access the 0526030.UXTHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 05260,
or try a keyword search, such as Electric Fuses
