0527451833 - Molex

Description: Conn FFC/FPC Connector SKT 18 POS 0.5mm Solder RA SMD Easy-On™ T/R

Download 0527451833 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

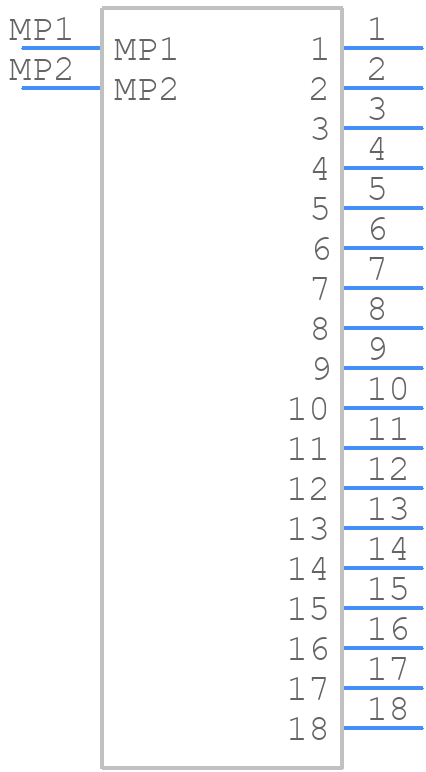

Symbol
0527451833 - Molex - PCB symbol
click to zoom
PCB Footprints
0527451833 - Molex PCB footprint - Other - Other - 0527451833-2
click to zoom
3D Models
0527451833 - Molex - 3D model - Other - 0527451833-2
click to zoom

0527451833 Details

  • Manufacturer Part Number:

    0527451833

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    EASY-ON, POLARIZED

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.252 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94V-0

0527451833 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0527451833 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0527451833 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0527451833 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • Yes, the 0527451833 connector is designed for automated assembly processes. However, it's recommended to consult with Molex's application notes and guidelines for specific assembly equipment and processes.
  • The operating temperature range for the 0527451833 connector is -40°C to 105°C. However, it's recommended to consult the datasheet for specific temperature ratings for the connector's materials and components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0527451833 Overview

Use the download button to access the 0527451833 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 05274, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
