0528922033 - Molex

Description: Conn FPC Connector SKT 20 POS 0.5mm Solder RA SMD Easy-On™ T/R

Download 0528922033 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

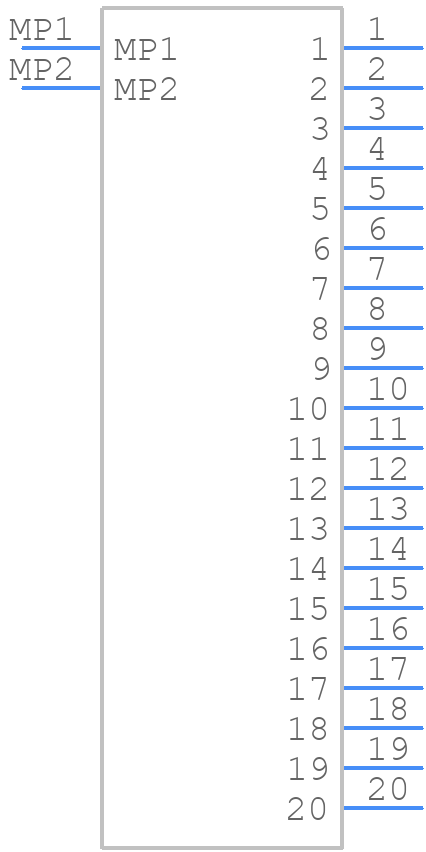

0528922033 - Molex - PCB symbol
click to zoom
PCB Footprints
0528922033 - Molex PCB footprint - Other - Other - 0528922033-1
click to zoom
3D Models
0528922033 - Molex - 3D model - Other - 0528922033-1
click to zoom

0528922033 Details

  • Manufacturer Part Number:

    0528922033

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    EASY ON, ZIF

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    ZIF N

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

0528922033 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 0528922033 connector is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 0528922033 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 0528922033 connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The mating cycle life of the 0528922033 connector is 500 cycles minimum.
