0528922433 - Molex

Description: Conn FPC Connector SKT 24 POS 0.5mm Solder RA SMD Easy-On™ T/R

Download 0528922433 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

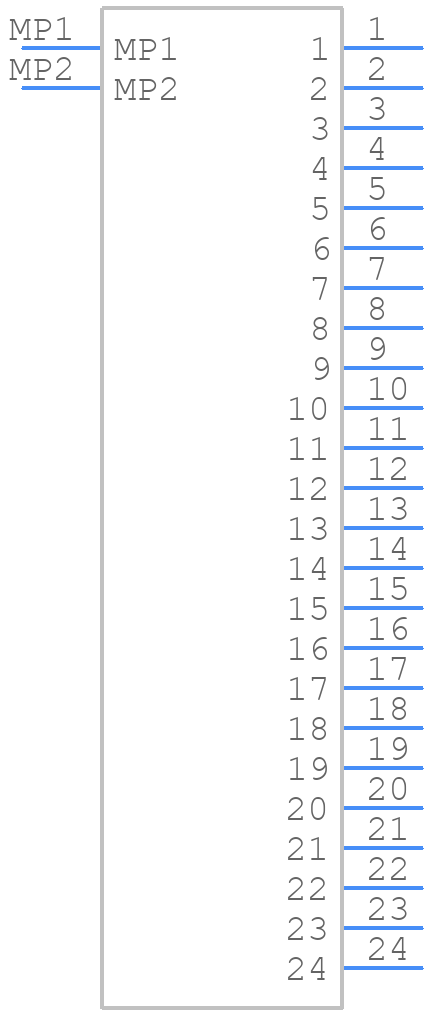

Symbol
0528922433 - Molex - PCB symbol
click to zoom
PCB Footprints
0528922433 - Molex PCB footprint - Other - Other - 0528922433
click to zoom
3D Models
0528922433 - Molex - 3D model - Other - 0528922433
click to zoom

0528922433 Details

  • Manufacturer Part Number:

    0528922433

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Japan, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    EASY-ON

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.020 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

0528922433 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 0528922433 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 0528922433 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0528922433 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The mating cycle life of the 0528922433 connector is 500 cycles minimum.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0528922433 Overview

Use the download button to access the 0528922433 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 05289, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
