Part Image

0539840681 - Molex

Description: 2.00mm Pitch IEEE 1394-1995 Shielded I/O PCB Socket, Right-Angle, Flat, Reflow Dip, 6 Circuits

Download 0539840681 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0539840681 - Molex - PCB symbol
click to zoom
PCB Footprints

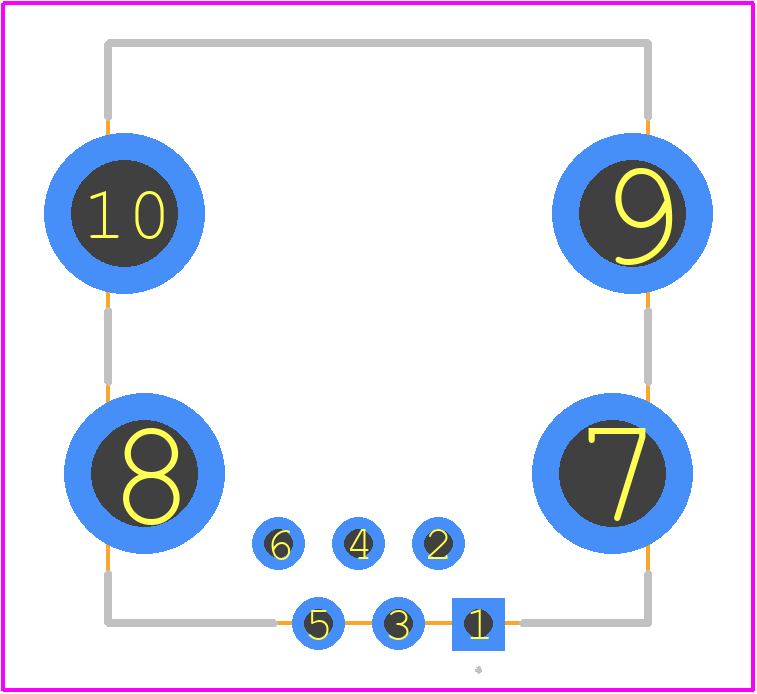

0539840681 - Molex PCB footprint - Other - Other - 0539840681-7
click to zoom
3D Models
0539840681 - Molex - 3D model - Other - 0539840681-7
click to zoom

0539840681 Details

  • Manufacturer Part Number:

    0539840681

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e3

0539840681 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0539840681 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0539840681 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum operating temperature for the 0539840681 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • While it's possible to use a different wire gauge, it's not recommended. Using a wire gauge that's not specified in the datasheet may affect the connector's performance, reliability, and durability.
  • To ensure proper EMI shielding, make sure to follow the recommended grounding and shielding procedures outlined in the datasheet. Additionally, use a shielded cable and ensure the connector is properly mated to the PCB or other connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0539840681 Overview

Use the download button to access the 0539840681 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 05398, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
