0541323333 - Molex

Description: Conn FFC/FPC Connector SKT 33 POS 0.5mm Solder RA SMD Easy-On™ T/R

Download 0541323333 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

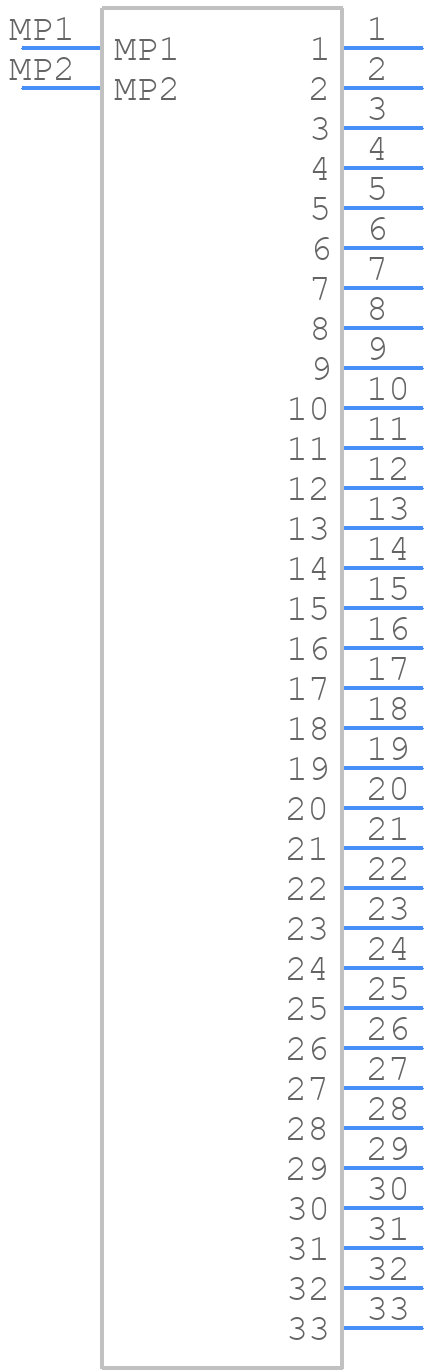

Symbol
0541323333 - Molex - PCB symbol
click to zoom
PCB Footprints
0541323333 - Molex PCB footprint - Other - Other - 0541323333-1
click to zoom
3D Models
0541323333 - Molex - 3D model - Other - 0541323333-1
click to zoom

0541323333 Details

  • Manufacturer Part Number:

    0541323333

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    EASY-ON, POLARIZED

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.179 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    33

  • UL Flammability Code:

    94V-0

0541323333 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0541323333 connector is to mate the keying feature first, followed by the shell, and finally the contacts. This ensures proper alignment and prevents damage to the connector.
  • To ensure proper polarization, make sure the keying feature on the plug is aligned with the keyway on the receptacle. This ensures that the connector is mated correctly and prevents incorrect orientation.
  • The 0541323333 connector is rated for operation in temperatures ranging from -40°C to 105°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
  • Yes, the 0541323333 connector is designed to withstand high-vibration environments. However, it's crucial to ensure that the connector is properly secured and mated to prevent damage or disconnection.
  • The 0541323333 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0541323333 Overview

Use the download button to access the 0541323333 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 05413, or try a keyword search, such as Headers and Edge Type Connectors
