0541323633 - Molex

Description: Conn FFC/FPC Connector SKT 36 POS 0.5mm Solder RA SMD Easy-On™ Embossed T/R

Download 0541323633 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

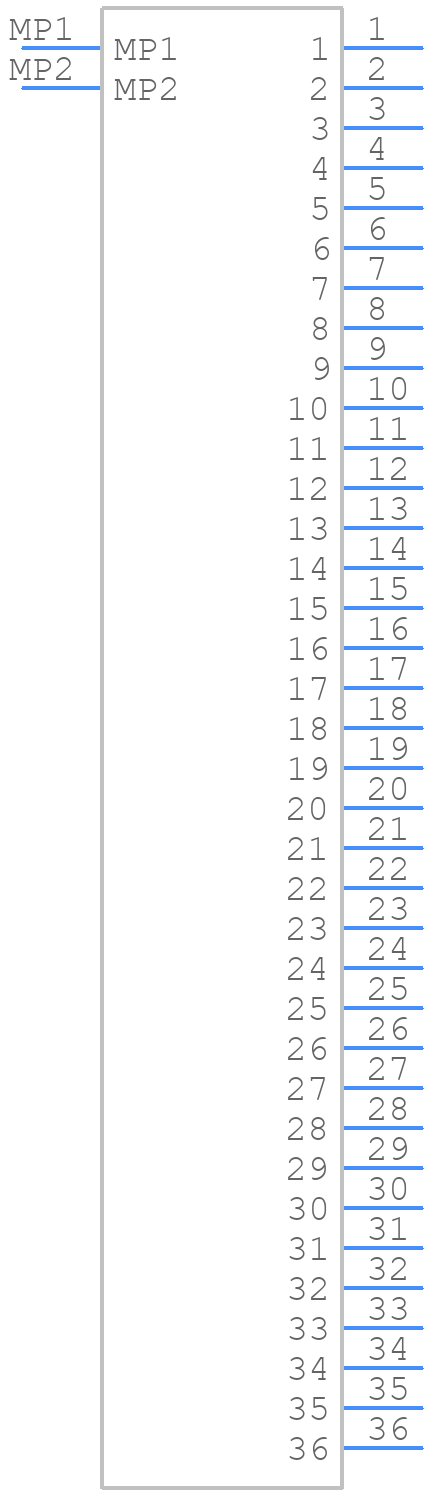

0541323633 - Molex - PCB symbol
click to zoom
PCB Footprints
0541323633 - Molex PCB footprint - Other - Other - 0541323633-1
click to zoom
3D Models
0541323633 - Molex - 3D model - Other - 0541323633-1
click to zoom

0541323633 Details

  • Manufacturer Part Number:

    0541323633

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    FITTING NAIL

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.179 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin/Silver/Bismuth (Sn/Ag/Bi)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

0541323633 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0541323633 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The operating temperature range for the 0541323633 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 0541323633 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The mating cycle life of the 0541323633 connector is 500 cycles minimum.
