Part Image

0702461404 - Molex

Description: C-Grid shrouded header, 14-position

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

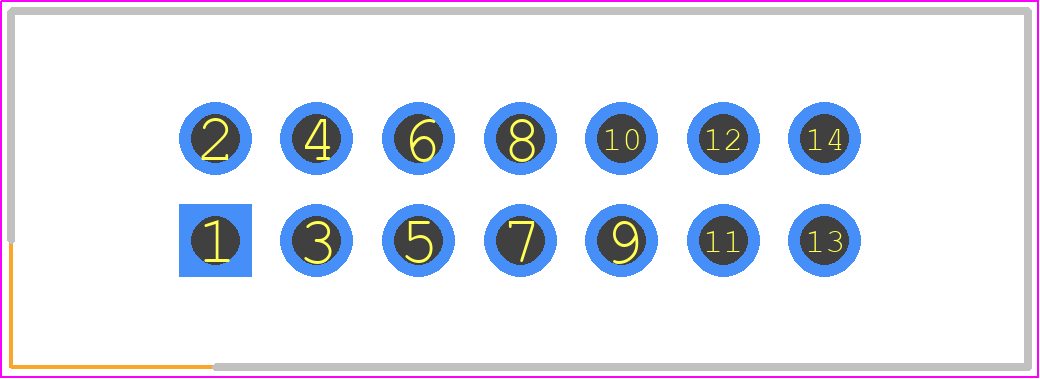

0702461404 - Molex PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 0702461404
click to zoom

3D Models

0702461404 - Molex  - 3D model - Header, Shrouded - Straight PTH Box - 0702461404
click to zoom

0702461404 Details

  • Manufacturer Part Number:

    0702461404

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LOW HALOGEN, ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    compliant

  • Manufacturer:

    Molex

  • Risk Rank:

    1.12

  • Additional Feature:

    LOW PROFILE, POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

Risk Rank: Design Risk

0702461404 — Molex
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Risk Rank

Risk Rank is a proprietary algorithm Supplyframe has developed to quantify component risk using multiple data points. This ranking helps engineers and buyers determine whether alternates should be sought for parts that are deemed as high risk.

Risk Rank Example

Risk Rank is determined by a combination of factors such as product lifecycle status, price & inventory volatility, current inventory availability and much more. Even the availability of manufacturer specifications, part documentation such as datasheets and reference designs have an impact on determining the overall riskiness of a part.

The risk is characterized across three product phases:

  • Design
  • Production
  • Long Term

We focus on the Design Phase on Component Search Engine in our evaluation of Risk.

Design Phase

The design phase of a product is at the beginning of the product lifecycle. This is when engineers are doing analysis of components in the marketplace, determining which specifications are most important for their design and assessing the cost impact of using this particular component. While this is early in the product lifecycle, choices at this point can severely impact a product much later on when the product is being made. Additionally, this stage is the one furthest from a product being made, which is why we focus on metrics of stability over time when determining Design Risk.

Risk Rank Breakdown

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

0702461404 Overview

Use the download button to access the 0702461404 schematic symbol, PCB footprint, and 3D model.
0702461404 by Molex has a score of
To find more CAD model downloads similar to this part, try a partial part number search, like 07024, or try a keyword search, such as Headers and Edge Type Connectors

Parts related to 0702461404

Showing 0 results

0702461404 Alternates

Showing results

Image Part Number Design Risk Rank Model
Part Image 70246-1441 Molex

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Part Image 70246-1439 Molex

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Part Image 70246-1449 Molex

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Part Image 70246-1440 Molex

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

Part Image 70246-1420 Molex

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

For a full list of alternate parts for 0702461404, check out FindChips.com
