07311000020 - HARTING

Description: Harting TB Series 4.4 mm, 6.25 mm 8 Way 2 Row Right Angle PCB Socket Through Hole Board to Board

Download 07311000020 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

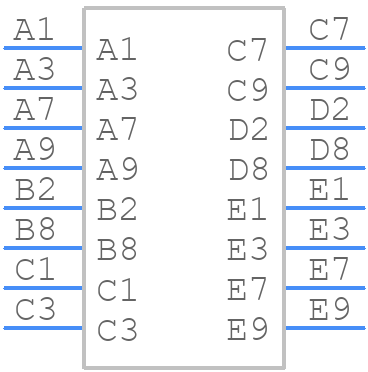

07311000020 - HARTING - PCB symbol
click to zoom
PCB Footprints

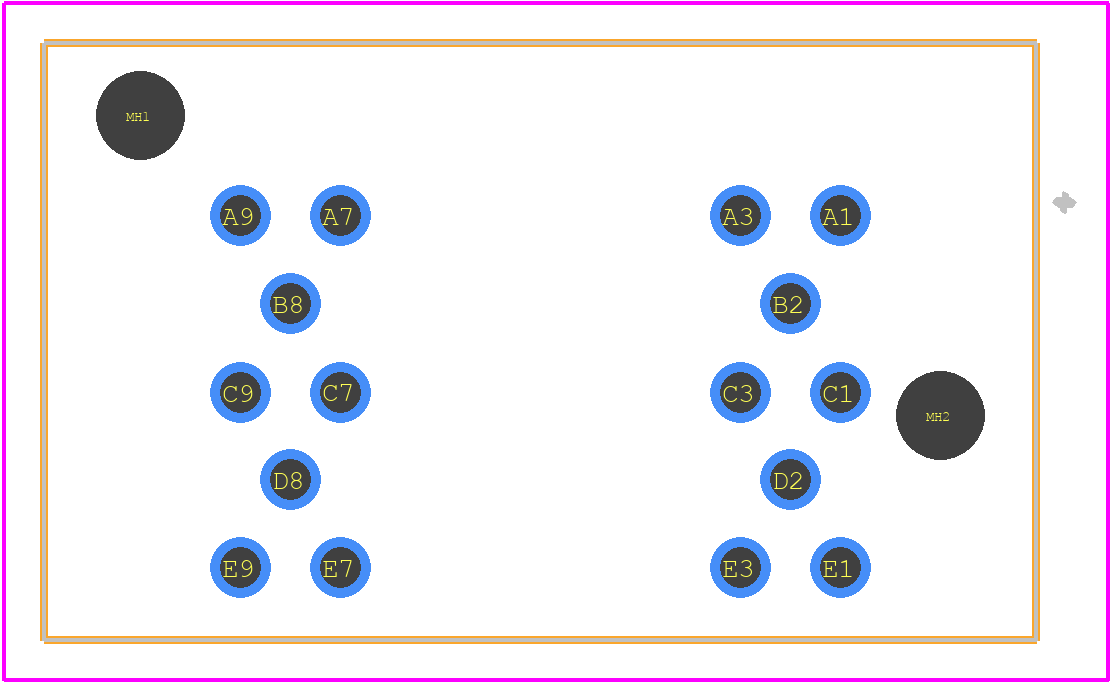

07311000020 - HARTING PCB footprint - Other - Other - 07311000020-1
click to zoom
3D Models
07311000020 - HARTING - 3D model - Other - 07311000020-1
click to zoom

07311000020 Details

  • Manufacturer Part Number:

    07311000020

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE
