Part Image

0732512203 - Molex

Description: SMA Jack, Right-Angle, Bulkhead Receptacle, PCB, Through Hole, Brass Body, Gold (Au) Plated, Jam Nut and Lockwasher Included, 2.79mm Leg Length, 54 Pieces Per Tray, 50 Ohms

Download 0732512203 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0732512203 - Molex - PCB symbol
click to zoom
PCB Footprints

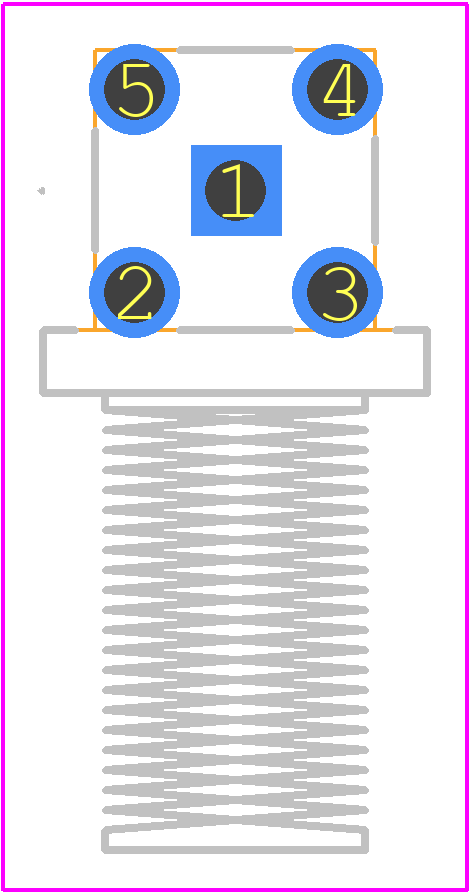

0732512203 - Molex PCB footprint - Other - Other - 0732512203-4
click to zoom
3D Models
0732512203 - Molex - 3D model - Other - 0732512203-4
click to zoom

0732512203 Details

  • Manufacturer Part Number:

    0732512203

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMA CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    COAX

  • Coupling Type:

    THREADED

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

0732512203 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0732512203 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0732512203 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0732512203 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • It's not recommended to use a different wire gauge than specified in the datasheet. Using a smaller wire gauge may cause signal integrity issues, while using a larger wire gauge may cause mechanical stress on the connector.
  • To ensure proper EMI shielding with the 0732512203 connector, make sure to follow Molex's guidelines for shielding and grounding. This includes using the correct shielding materials, ensuring proper contact between the shield and the connector, and grounding the shield according to the system's EMI requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0732512203 Overview

Use the download button to access the 0732512203 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07325, or try a keyword search, such as RF SMA/SSMA Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
