0743204004 footprint, schematic symbol and 3D model by Molex

Symbol

click to zoom

PCB Footprints

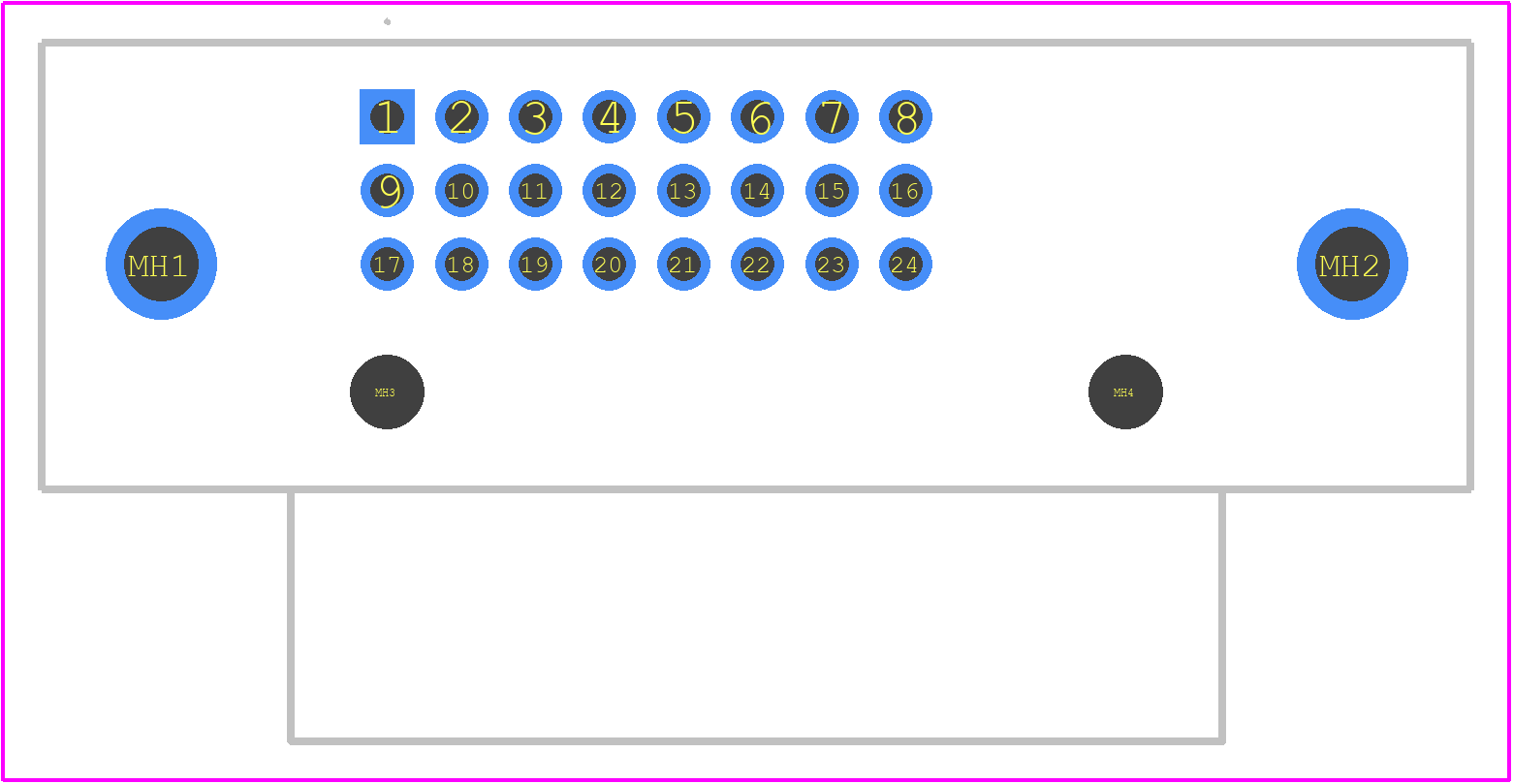

0743204004 - Molex PCB footprint - Other - Other - 0743204004-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0743204004
Part Number 0743204004
Manufacturer Molex
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 0743204004-2
Released Date Oct 7, 2023
Last Modified Date Oct 8, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

0743204004 Details

Manufacturer Part Number:
0743204004
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
ROHS COMPLIANT
Country Of Origin:
Hong Kong SAR, Mainland China, Mexico, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
19 Weeks, 3 Days
Manufacturer:
Molex
YTEOL:
3
Additional Feature:
POLARIZED
Body/Shell Style:
RECEPTACLE
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
24
UL Flammability Code:
94V-0

0743204004 Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on the 0743204004 connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 0743204004 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to consult with a Molex representative for specific application requirements.
The maximum operating temperature for the 0743204004 connector is 125°C (257°F). However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The 0743204004 connector is designed to meet IP67 standards for ingress protection, but it's recommended to consult with a Molex representative for specific environmental requirements and to follow proper sealing and protection methods.
The recommended wire gauge for the 0743204004 connector is 20-24 AWG, and the recommended insulation type is PVC or Teflon. However, it's recommended to consult with a Molex representative for specific application requirements.

Trust Checks

Community Provided

System Verified

Community Approved

0743204004 Overview

Use the download button to access the 0743204004 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 07432, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
