0743209004 - Molex

0743209004 Details

• Manufacturer Part Number:

  0743209004

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Country Of Origin:

  Hong Kong SAR, Mainland China, Mexico, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Molex

• YTEOL:

  3

• Additional Feature:

  MICROCROSS, EMI SHIELDED, LFH, POLARIZED

• Board Mounting Option:

  HOLE 0.125

• Body Breadth:

  0.39 inch

• Body Depth:

  0.454 inch

• Body Length:

  1.45 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  TELECOM AND DATACOM CONNECTOR

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  500VDC V

• Durability:

  100 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  WHITE

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  3

• Number of Ports:

  1

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Option:

  GENERAL PURPOSE

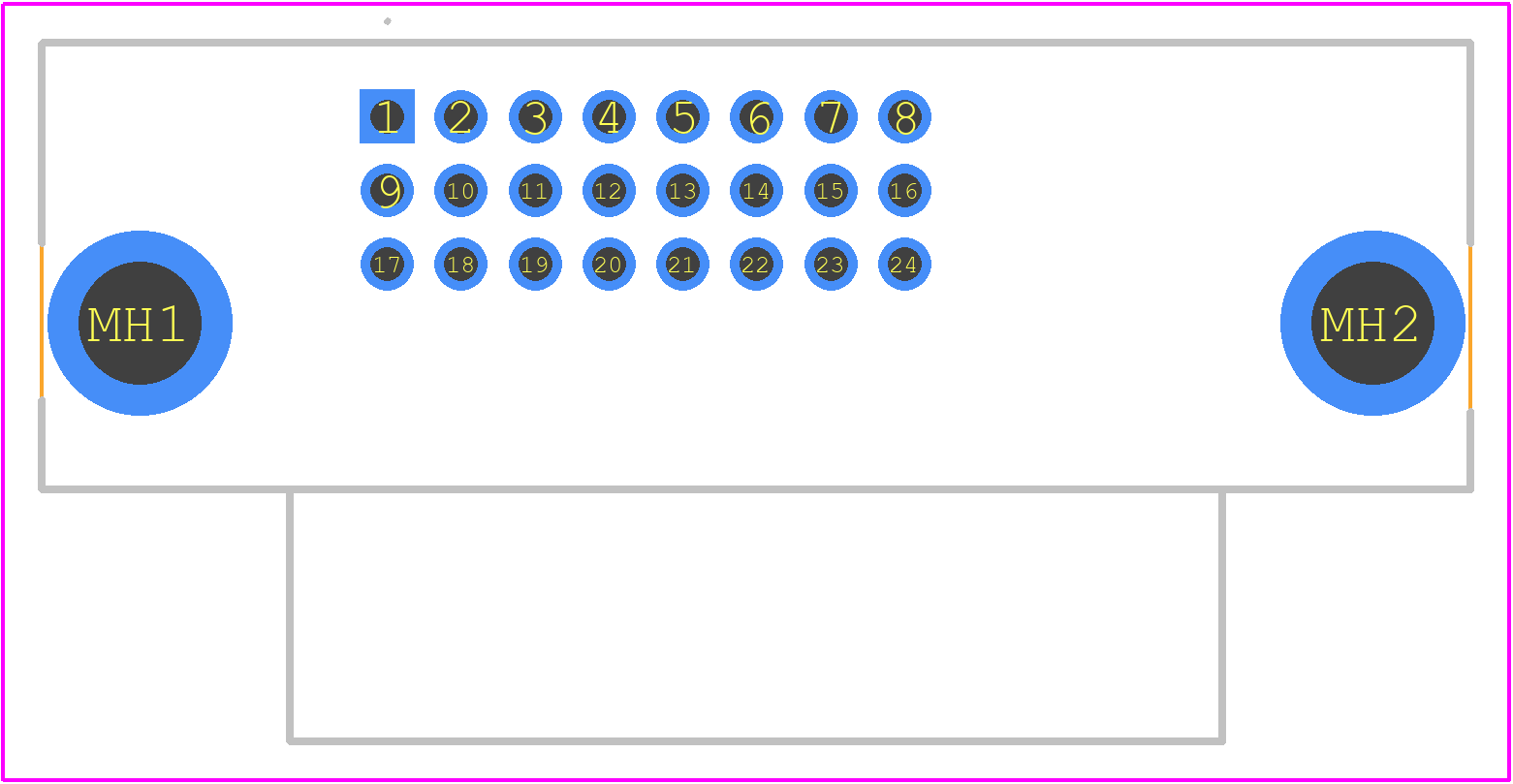

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.91 mm

• Plating Thickness:

  2u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Terminal Length:

  0.092 inch

• Terminal Pitch:

  1.91 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  24

• UL Flammability Code:

  94V-0
