0744410007 - Molex

Description: 0.80mm Pitch XFP Host Connector, Z-Axis Pluggable, Right-Angle, Surface Mount, 30 Circuits, 0.38µm Gold (Au)

Download 0744410007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

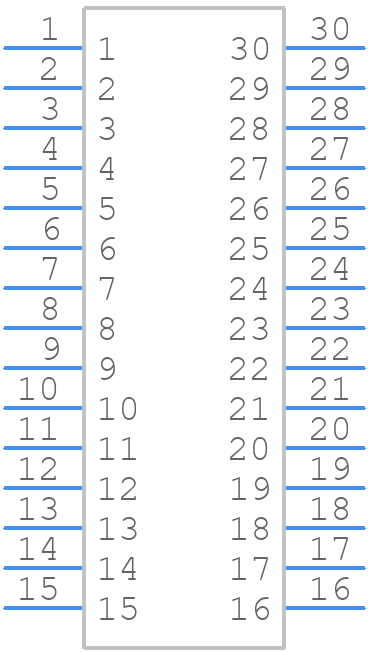

0744410007 - Molex - PCB symbol
click to zoom
PCB Footprints
0744410007 - Molex PCB footprint - Other - Other - 0744410007
click to zoom
3D Models
0744410007 - Molex - 3D model - Other - 0744410007
click to zoom

0744410007 Details

  • Manufacturer Part Number:

    0744410007

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.212 inch

  • Body Depth:

    0.324 inch

  • Body Length:

    0.591 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    SFP CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    XFP TYPE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Row Spacing:

    0.018 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    8.2 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

0744410007 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0744410007 connector is to mate the keying feature first, followed by the shell, and finally the contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0744410007 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure and functional.
  • The 0744410007 connector has an operating temperature range of -40°C to 125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions.
  • While it's possible to use a different wire gauge, it's not recommended. The 0744410007 connector is designed to work with specific wire gauges, and using a different gauge may affect the connector's performance, reliability, and durability.
  • To ensure proper EMI shielding, make sure to follow the recommended grounding and shielding procedures outlined in the datasheet. Additionally, ensure that the connector is properly mated and that the shielding is securely connected to the chassis or other grounding points.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0744410007 Overview

Use the download button to access the 0744410007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07444, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
