- Part Number 0747540101
- Manufacturer Molex
- Pin Count 20
- Part Category Connector
- Package Category Other

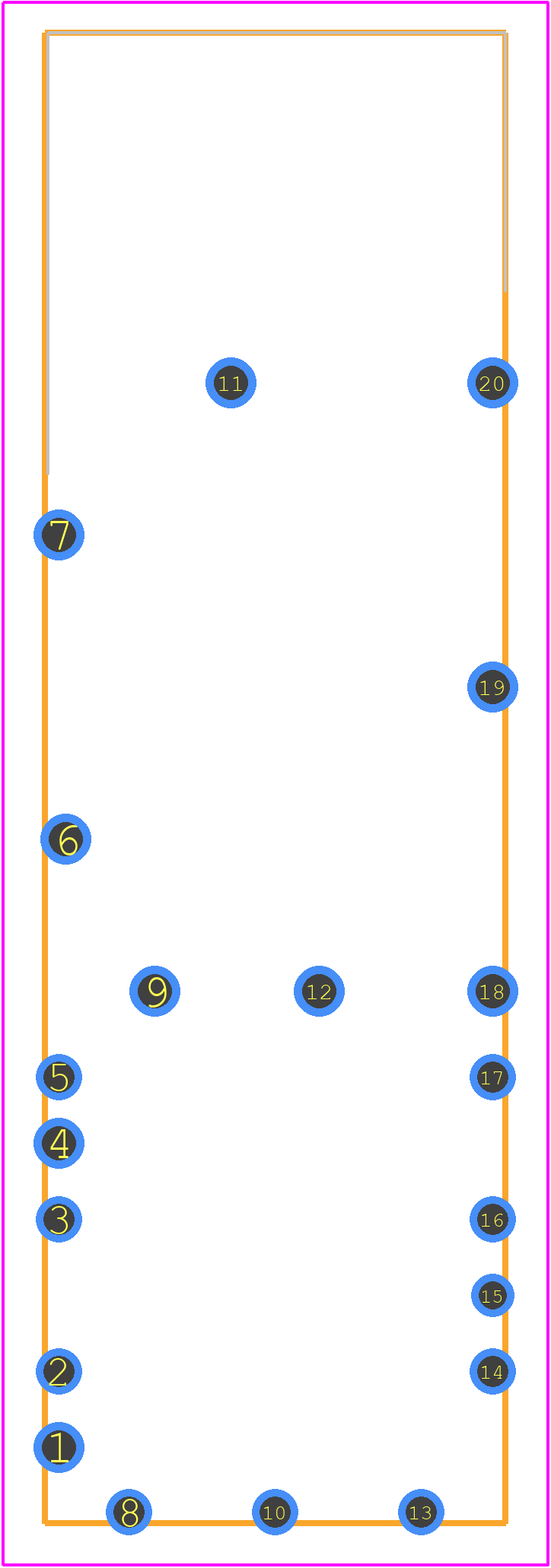

- Footprint Name Other - 0747540101-7
- Released Date Nov 2, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
0747540101 Details
-
Manufacturer Part Number:
0747540101
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Molex
-
YTEOL:
0
-
Assembly Item Name:
CAGE ASSEMBLY
-
Connector Support Type:
CONNECTOR ACCESSORY
-
DIN Conformance:
NO
-
IEC Conformance:
NO
-
MIL Conformance:
NO
0747540101 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
-
Yes, the 0747540101 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
-
The operating temperature range for the 0747540101 connector is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 0747540101 connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
-
No, the 0747540101 connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.
Trust Checks
Expert Contribution
System Verified
Community Approved
0747540101 Overview
Use the download button to access the 0747540101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07475,
or try a keyword search, such as Assembly Items
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
