0749603048 footprint, schematic symbol and 3D model by Molex

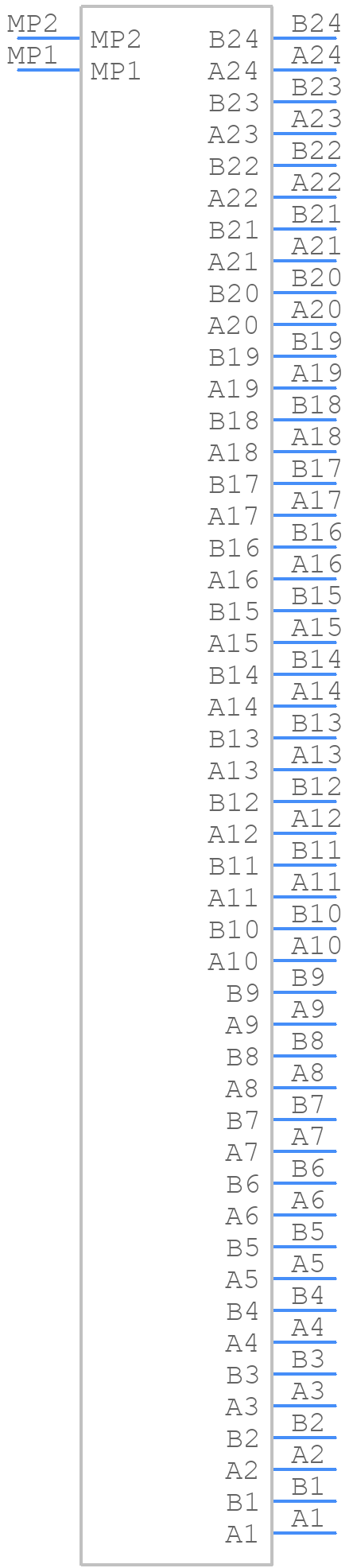

Symbol

click to zoom

PCB Footprints

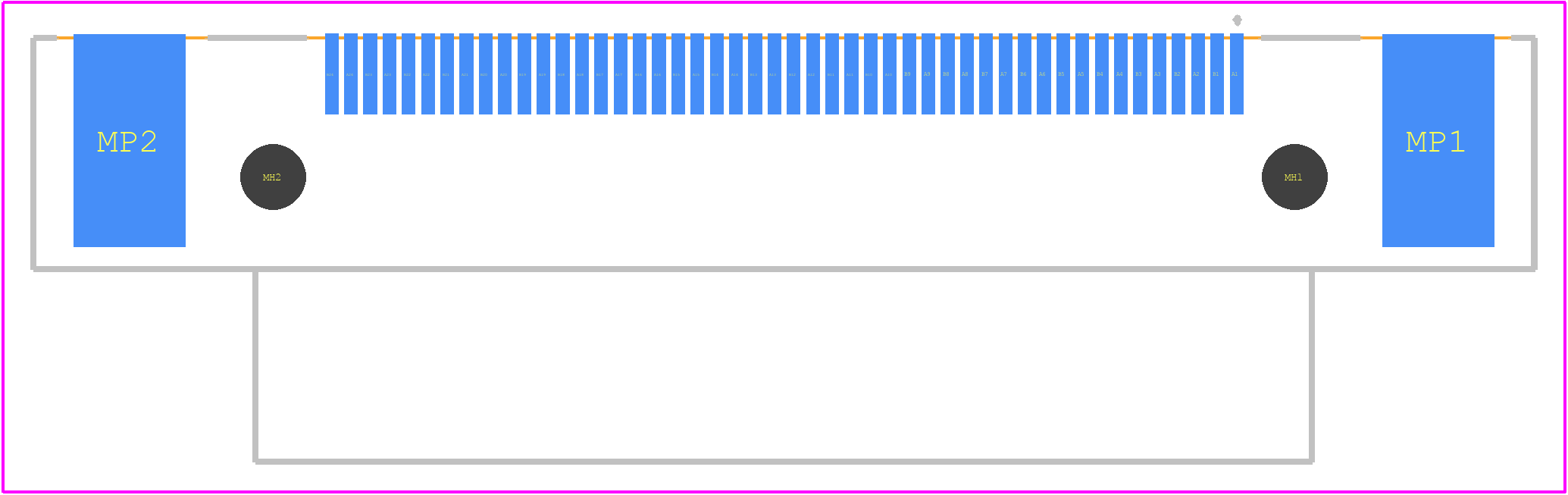

0749603048 - Molex PCB footprint - Other - Other - 0749603048-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0749603048
Part Number 0749603048
Manufacturer Molex
Pin Count 50
Part Category Connector
Package Category Other
Footprint Name Other - 0749603048-2
Released Date Feb 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

0749603048 Details

Manufacturer Part Number:
0749603048
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Molex
YTEOL:
0
Additional Feature:
POLARIZED, SHEILDED
Body/Shell Style:
RECEPTACLE
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
48
UL Flammability Code:
94V-0

0749603048 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs).
Yes, the 0749603048 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
The operating temperature range for the 0749603048 connector is -40°C to 105°C (-40°F to 221°F).
Yes, the 0749603048 connector is designed for outdoor use and can withstand exposure to moisture and humidity.
No, the 0749603048 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

0749603048 Overview

Use the download button to access the 0749603048 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 07496, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
