Part Image

0760455002 - Molex

Description: Small Form-factor Pluggable Plus (SFP+) Stacked 2-by-2 Multi-Port Connector with 2 Inner Lightpipe Ports, EMI Metal Gasket, 80 Circuits, Tin (Sn) Tails

Download 0760455002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0760455002 - Molex - PCB symbol
click to zoom
PCB Footprints

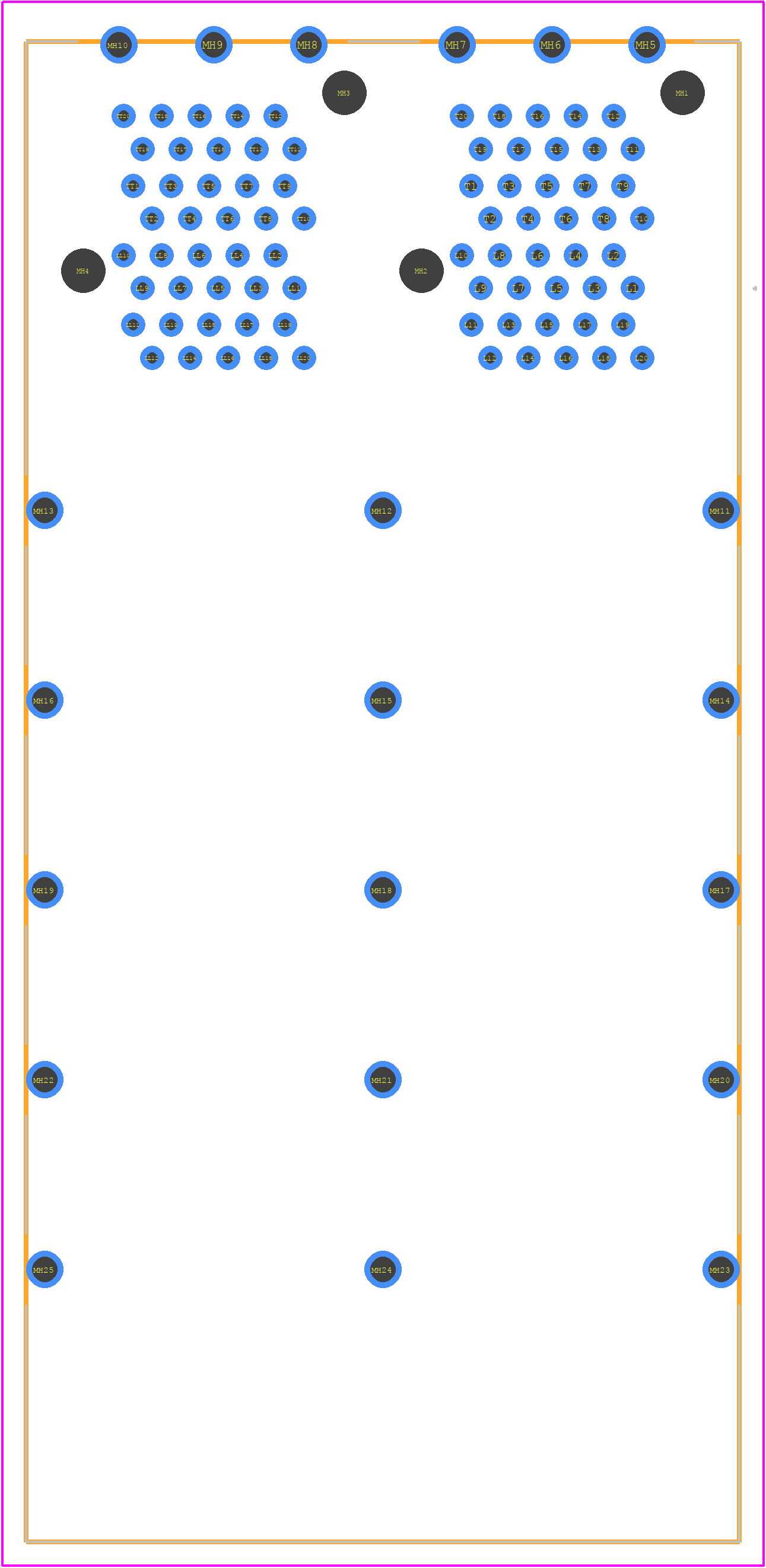

0760455002 - Molex PCB footprint - Other - Other - 0760455002-7
click to zoom
3D Models
0760455002 - Molex - 3D model - Other - 0760455002-7
click to zoom

0760455002 Details

  • Manufacturer Part Number:

    0760455002

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8.39

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYCARBONATE/POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

0760455002 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0760455002 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0760455002 connector is designed to withstand high-vibration environments. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent connector damage.
  • The maximum cable bend radius for the 0760455002 connector is 10mm. Exceeding this radius may cause damage to the cable or connector.
  • It's not recommended to use a different wire gauge than specified in the datasheet. Using a larger or smaller wire gauge may affect the connector's performance, reliability, and durability.
  • To ensure proper EMI shielding with the 0760455002 connector, make sure to follow Molex's guidelines for shielding and grounding. This includes using the correct shielding materials, ensuring proper contact between the shield and the connector, and following proper cable dressing and routing practices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0760455002 Overview

Use the download button to access the 0760455002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 07604, or try a keyword search, such as Telecom and Datacom Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
