0826-1X2T-HS-F - Bel

Description: RJ45 CONNECTOR, JACK, 8P8C, 2PORT, TH; Modular Connector Type:RJ45 Jack; Port Configuration:1 x 2 (Ganged); No. of Positions / Loaded Contacts (per Port):8P8C; LAN Category:Cat5e; IP Rating:-; Connector Mounting:Through Hole Mount RoHS Compliant: Yes

Download 0826-1X2T-HS-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

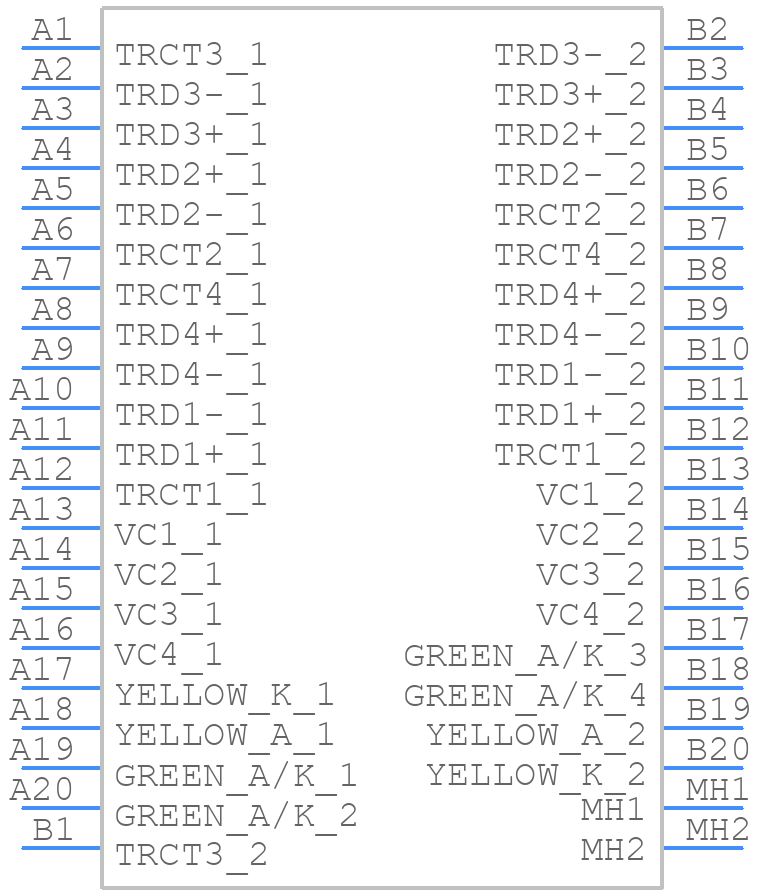

0826-1X2T-HS-F - Bel - PCB symbol
click to zoom
PCB Footprints

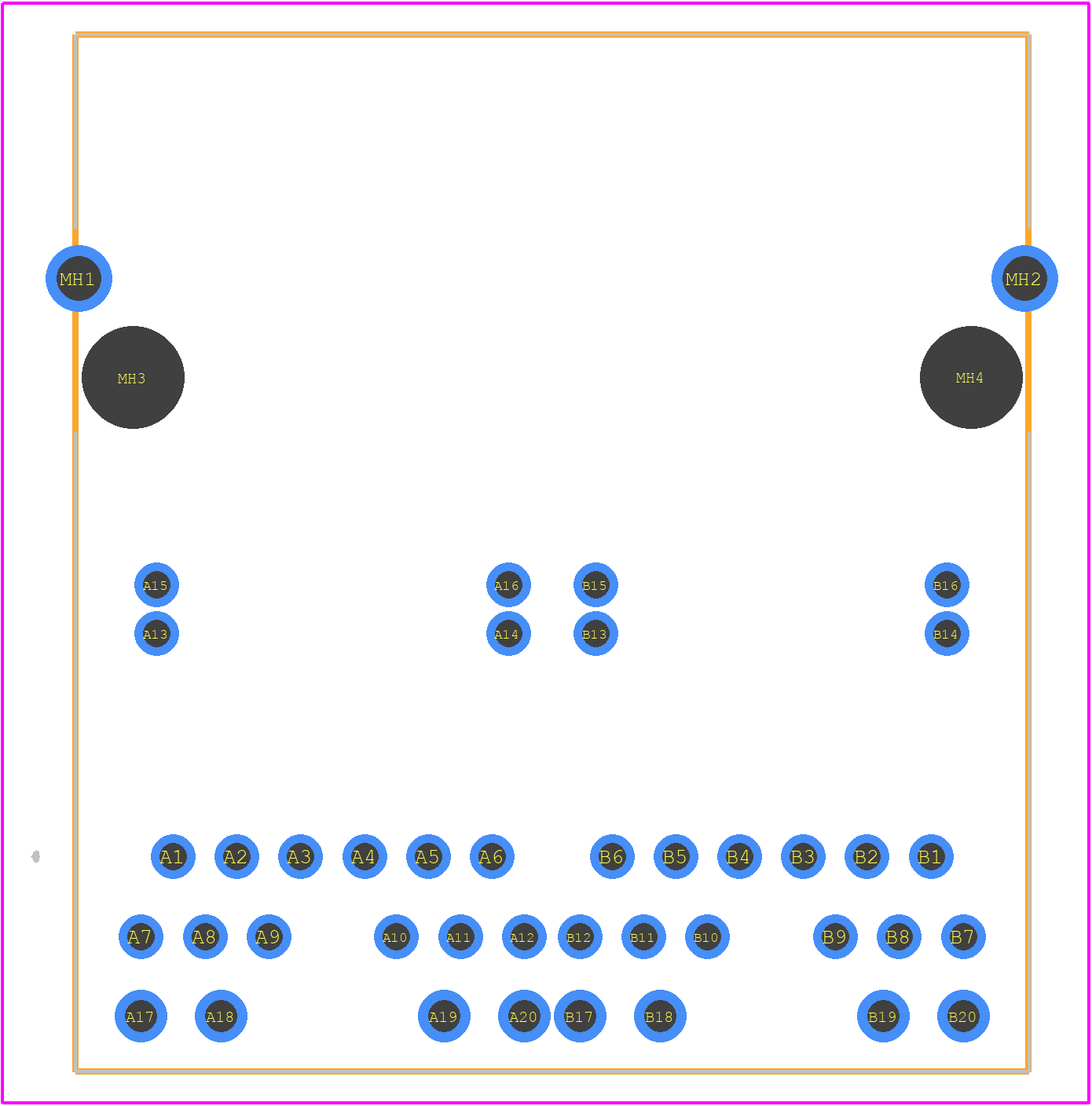

0826-1X2T-HS-F - Bel PCB footprint - Other - Other - 0826-1X2T-HS-F-3
click to zoom
3D Models
0826-1X2T-HS-F - Bel - 3D model - Other - 0826-1X2T-HS-F-3
click to zoom

0826-1X2T-HS-F Details

  • Manufacturer Part Number:

    0826-1X2T-HS-F

  • Manufacturer:

    Belton Technolofgy

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0826-1X2T-HS-F Overview

Use the download button to access the 0826-1X2T-HS-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 0826-, or try a keyword search, such as Telecom and Datacom Connectors
