Littelfuse provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal performance, reliability, and to prevent thermal runaway.
To select the correct fuse, consider factors such as the maximum voltage, current, and power rating of your circuit. You should also consider the fuse's interrupting rating, melting I²t, and cold resistance. Littelfuse provides a fuse selection guide or online tools to help with this process.
Lead time and availability may vary depending on the region, distributor, and quantity. It's best to check with authorized distributors or Littelfuse's website for the most up-to-date information on lead time and availability.
Yes, fuses can be sensitive to electrostatic discharge (ESD) and mechanical stress. Handle the devices with care, and follow proper ESD precautions during storage, handling, and assembly. Refer to Littelfuse's documentation for specific guidelines.
The 0828015.UXTHP has a maximum operating temperature of 125°C. While it can operate in high-temperature environments, it's essential to consider the fuse's derating curves and ensure that the application does not exceed the recommended temperature ratings.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
0828015.UXTHP Overview

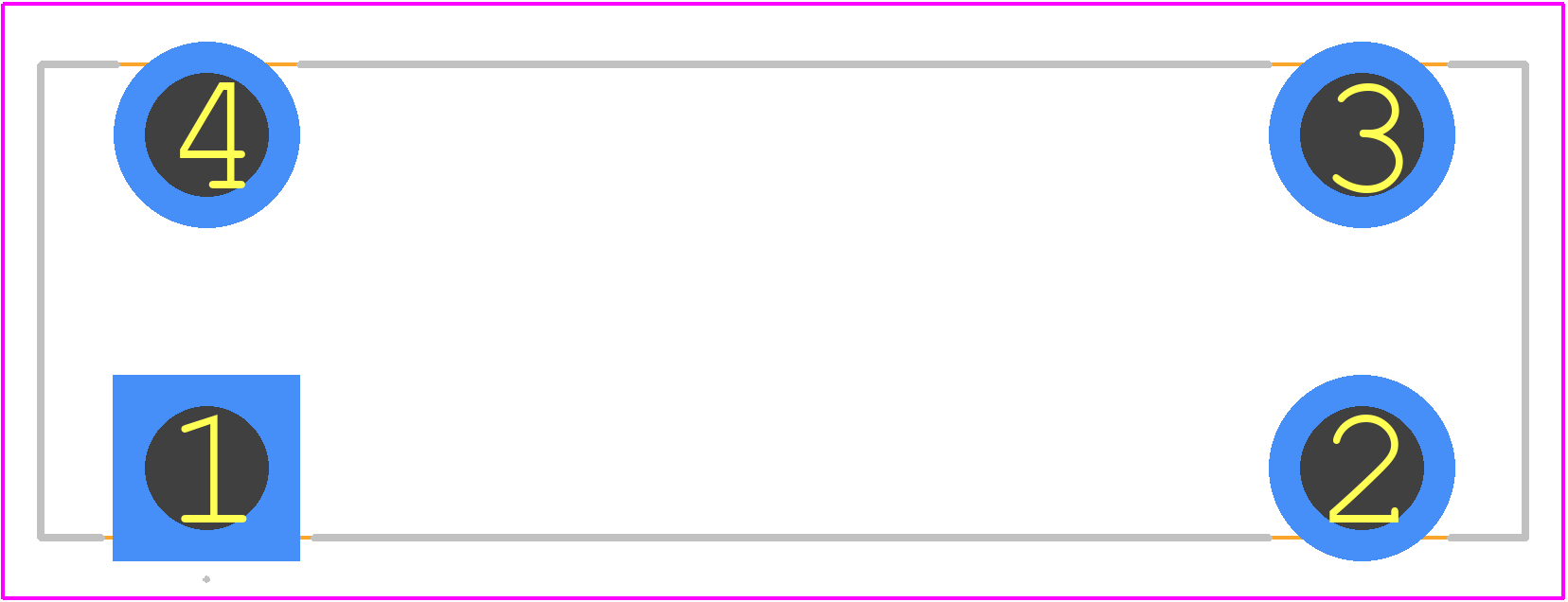

Use the download button to access the 0828015.UXTHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 08280,
or try a keyword search, such as Electric Fuses
