Part Image

0828020.P - LITTELFUSE

Description: The 828 series fuses are specifically designed and tested to the circuit protection needs of compact auto-electronics applications, which is 1000 Vdc rated with remarkable interrupting rating

Download 0828020.P Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 0828020.P model

Email notifications will be applied after download.

Send part feedback

Symbol

0828020.P - LITTELFUSE - PCB symbol

PCB Footprints

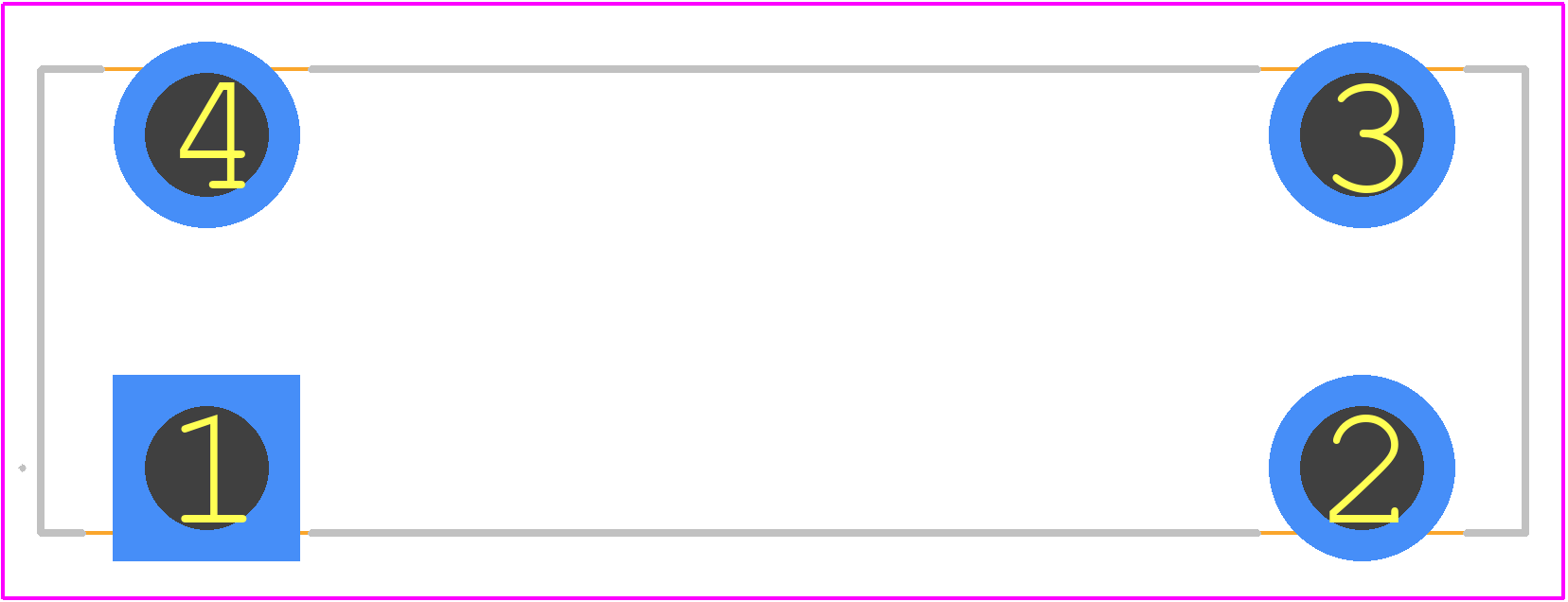

0828020.P - LITTELFUSE PCB footprint - Other - Other - 0828020.UXTHP-4

3D Models

0828020.P - LITTELFUSE - 3D model - Other - 0828020.UXTHP-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0828020.P
Part Number 0828020.P
Manufacturer LITTELFUSE
Pin Count 4
Part Category Fuse
Package Category Other
Footprint Name Other - 0828020.UXTHP-4
Released Date Apr 8, 2022
Last Modified Date Sep 7, 2024 6:43 AM UTC
Pinout / Pin List Click Here (Member Only)

0828020.P Details

Manufacturer Part Number:
0828020.P
Manufacturer:
Littelfuse Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

0828020.P Overview

Use the download button to access the 0828020.P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 08280, or try a keyword search, such as Electric Fuses
