0850030567 - Molex

Description: Conn DIN 41612 M 96 POS 2.54mm Solder RA Thru-Hole Tray

Download 0850030567 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0850030567 - Molex - PCB symbol
click to zoom

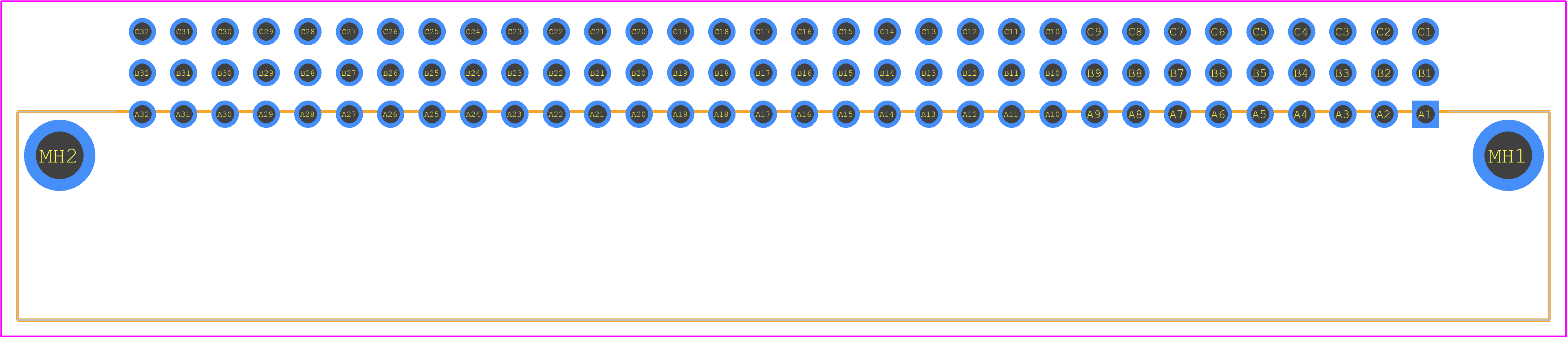

PCB Footprints
0850030567 - Molex PCB footprint - Other - Other - 0850030567-2
click to zoom
3D Models
0850030567 - Molex - 3D model - Other - 0850030567-2
click to zoom

0850030567 Details

  • Manufacturer Part Number:

    0850030567

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    400 Cycles

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

0850030567 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 0850030567 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The 0850030567 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 0850030567 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
  • No, the 0850030567 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0850030567 Overview

Use the download button to access the 0850030567 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 08500, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
