09-48-1094 - Molex

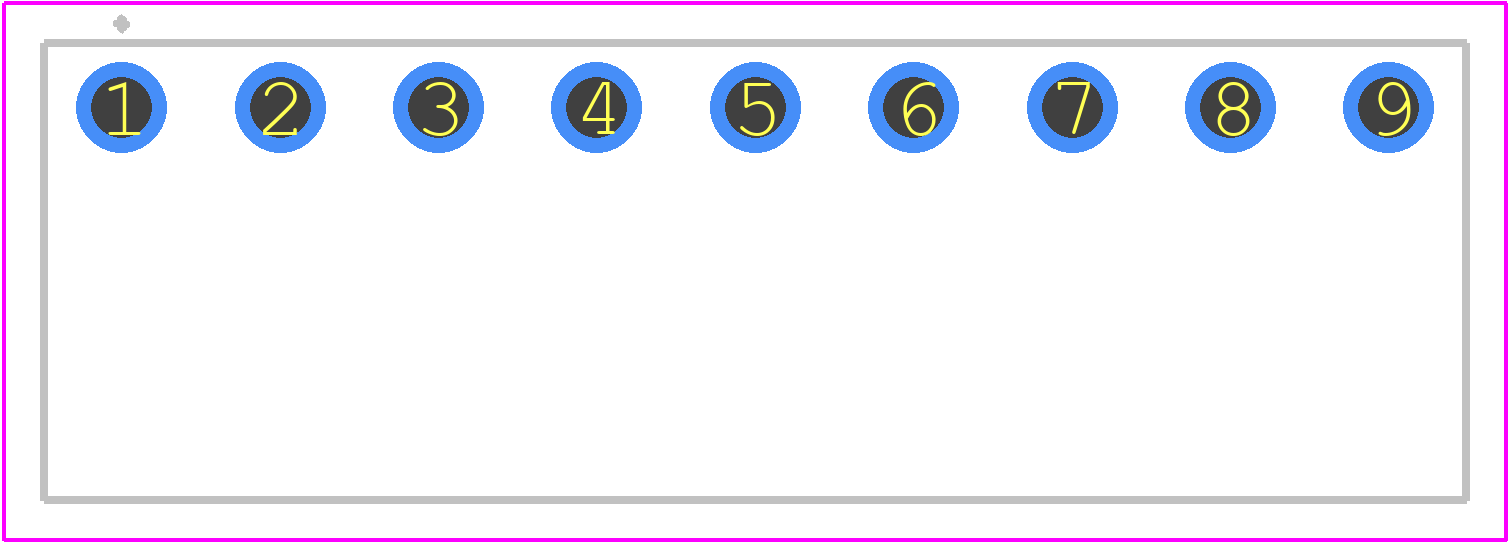

09-48-1094 Details

• Manufacturer Part Number:

  09-48-1094

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  India, Mexico, Puerto Rico, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  25 Weeks

• Manufacturer:

  Molex

• YTEOL:

  6.6

• Additional Feature:

  KK, STACKED

• Body Breadth:

  0.25 inch

• Body Depth:

  0.45 inch

• Body Length:

  1.4 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Arrangement:

  S0P9

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Matte Tin (Sn) - reflowed over Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Durability:

  25 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  10.6752 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYESTER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number of Rows Loaded:

  1

• Option:

  GENERAL PURPOSE

• Plating Thickness:

  60u inch

• Reference Standard:

  UL

• Terminal Length:

  0.145 inch

• Terminal Pitch:

  3.96 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  1.7792 N
