09-48-2101 - Molex

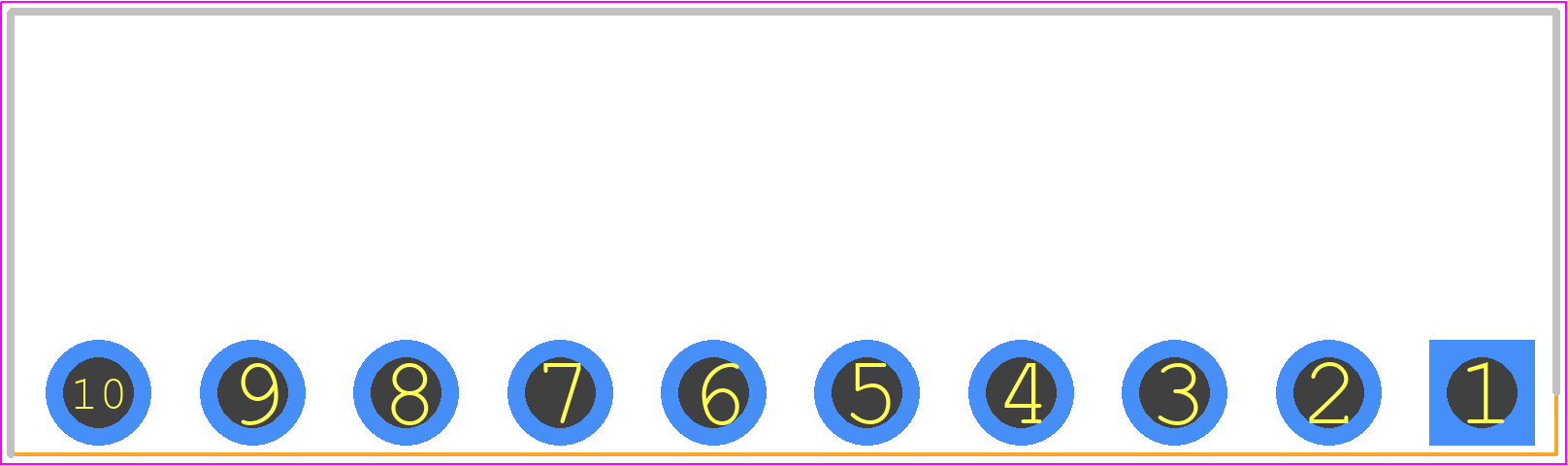

09-48-2101 Details

• Manufacturer Part Number:

  09-48-2101

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Molex

• YTEOL:

  6.6

• Additional Feature:

  KK, STACKED

• Body Breadth:

  0.308 inch

• Body Depth:

  0.449 inch

• Body Length:

  1.556 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  6 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1500VAC V

• Durability:

  25 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  9.7856 N

• Insulation Resistance:

  50000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  POLYESTER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.156 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  FRICTION LOCK

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  75 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL, CSA

• Terminal Length:

  0.145 inch

• Terminal Pitch:

  3.96 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  10

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  3.753 N
