09-48-3085 - Molex

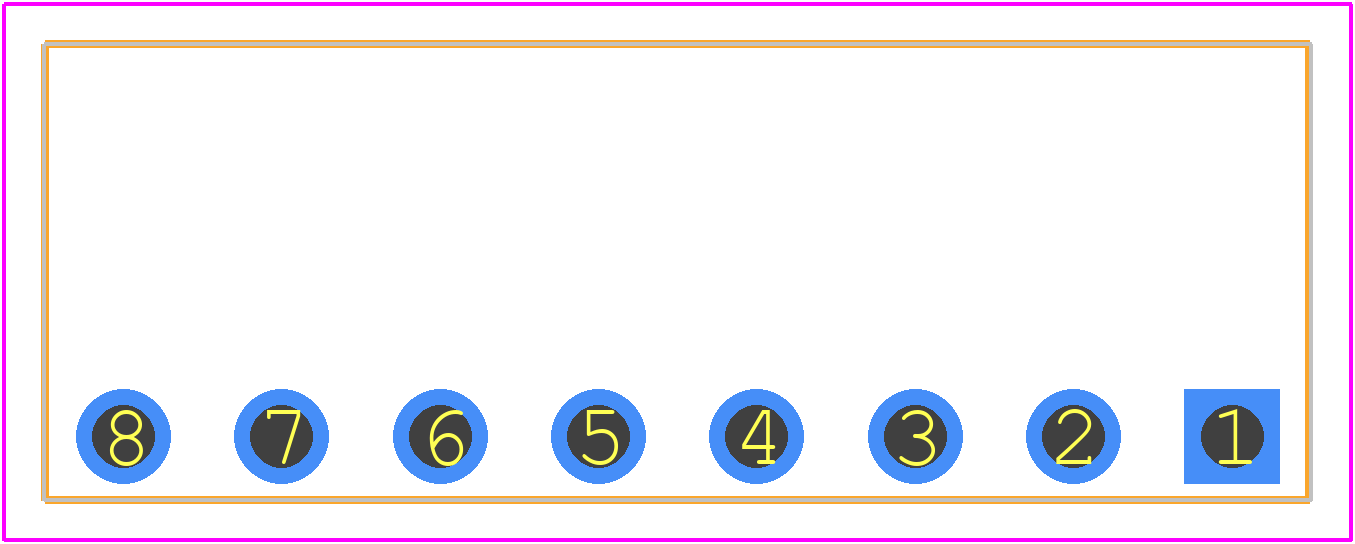

09-48-3085 Details

• Manufacturer Part Number:

  09-48-3085

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  India, Mexico, Puerto Rico

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  11 Weeks

• Manufacturer:

  Molex

• YTEOL:

  6.6

• Additional Feature:

  KK, STACKED

• Board Mounting Option:

  EDGE MOUNT

• Body Breadth:

  0.307 inch

• Body Depth:

  0.45 inch

• Body Length:

  1.244 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  6 mΩ

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1500VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .417 N

• Insulation Resistance:

  50000000000 Ω

• Insulator Material:

  POLYESTER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.156 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  POLARIZED LCK

• Mounting Option 2:

  PLASTIC

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  75 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL, CSA

• Terminal Length:

  0.145 inch

• Terminal Pitch:

  3.96 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .0834 N
