090-04018-002 footprint, schematic symbol and 3D model by Microchip

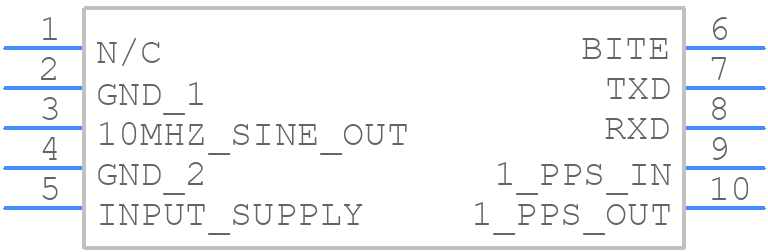

Symbol

click to zoom

PCB Footprints

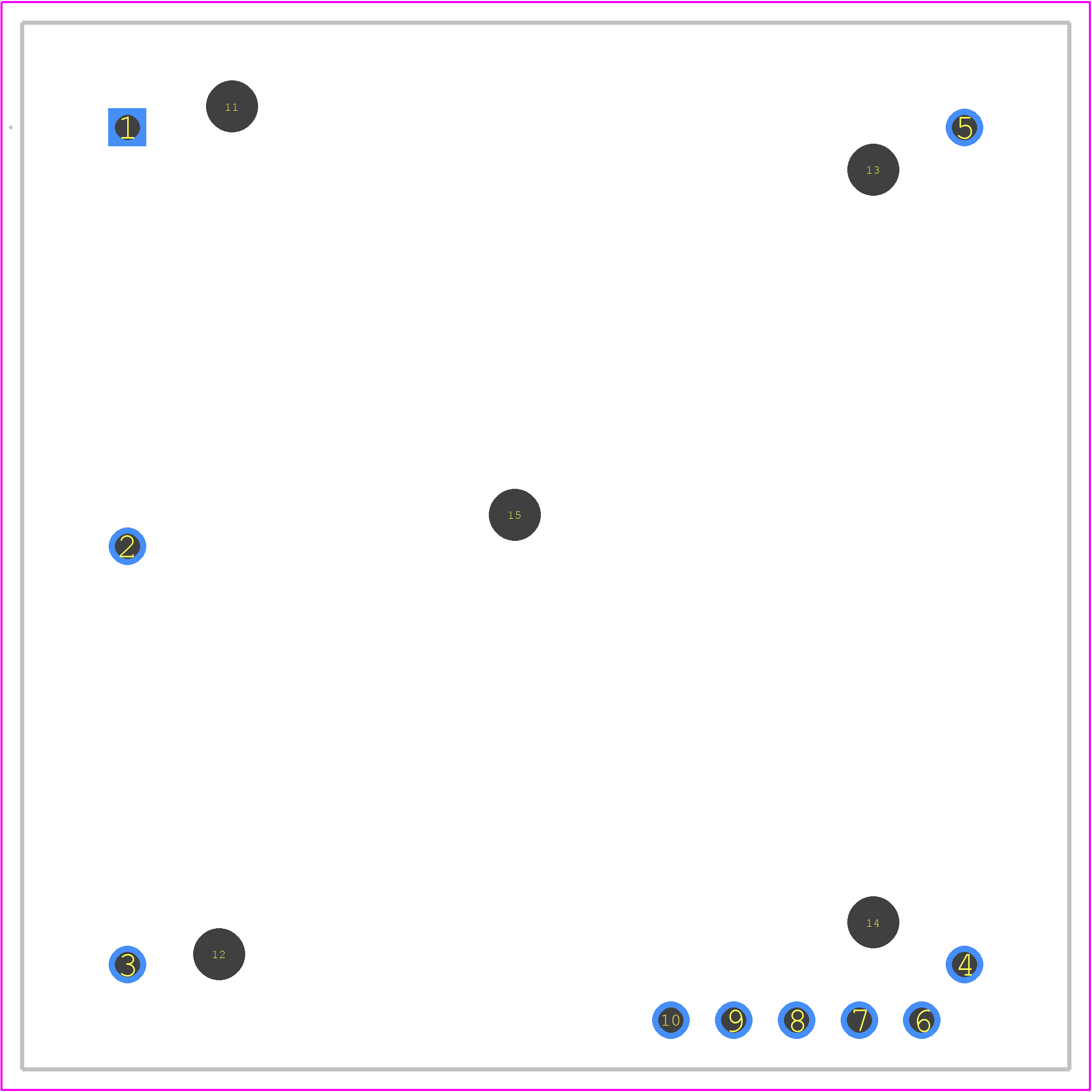

090-04018-002 - Microchip PCB footprint - Other - Other - 51 x 51 x 12.7mm

click to zoom

3D Models

090-04018-002 - Microchip - 3D model - Other - 51 x 51 x 12.7mm

click to zoom

Datasheet
Stock & Prices Price & Stock for 090-04018-002
Part Number 090-04018-002
Manufacturer Microchip
Pin Count 10
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - 51 x 51 x 12.7mm
Released Date Mar 13, 2026
Last Modified Date Mar 13, 2026 10:39 AM UTC
Pinout / Pin List Click Here (Member Only)

090-04018-002 Details

Manufacturer Part Number:
090-04018-002
Part Life Cycle Code:
Active
Factory Lead Time:
26 Weeks
Manufacturer:
Microchip Technology Inc
Oscillator Type:
ATOMIC OSCILLATOR

Trust Checks

Community Provided

System Verified

Community Approved

090-04018-002 Overview

Use the download button to access the 090-04018-002 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 090-0, or try a keyword search, such as Other Oscillators

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
