0901303214 - Molex

0901303214 Details

• Manufacturer Part Number:

  0901303214

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Ireland, Malaysia, Singapore, Slovakia

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  9.1

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• Dielectric Withstanding Voltage:

  750VAC V

• Durability:

  100 Cycles

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYESTER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

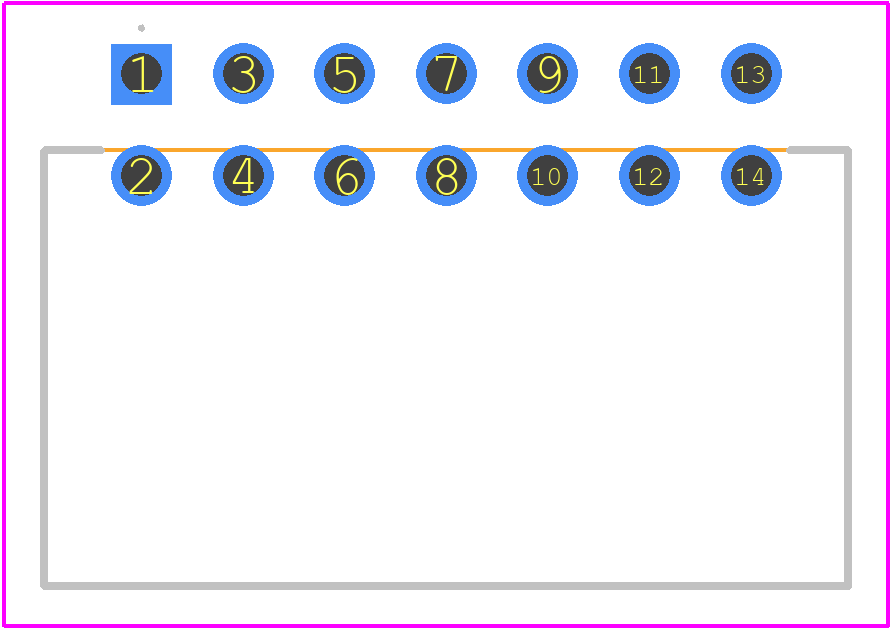

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  15u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL, CSA

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  14
