- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 09021646919
- Part Number 09021646919
- Manufacturer HARTING
- Pin Count 64
- Part Category Connector
- Package Category Other
- Footprint Name Other - 09021646919
- Released Date Jun 19, 2021
- Last Modified Date May 24, 2023 9:08 AM UTC
- Pinout / Pin List Click Here (Member Only)
09021646919 Details
-
Manufacturer Part Number:
09021646919
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
Connector Type:
BOARD EURO CONNECTOR
-
Contact Finish Mating:
GOLD OVER NICKEL
-
Contact Material:
COPPER ALLOY
09021646919 Frequently Asked Questions (FAQs)
-
The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
-
Yes, the 09021646919 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
-
Yes, the connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
-
The maximum operating temperature of the connector is 125°C, as specified in the datasheet.
-
Yes, the 09021646919 connector is part of the HARTING Han series and is compatible with other Han series connectors.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
09021646919 Overview

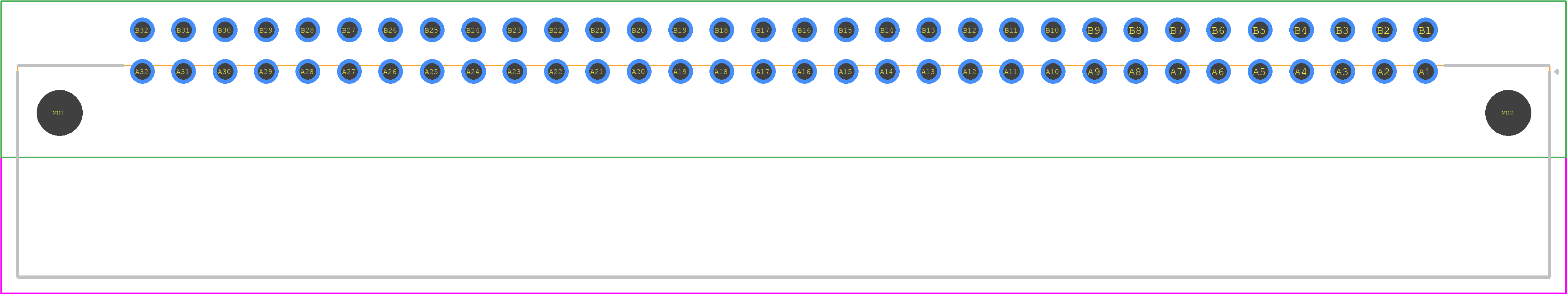

Use the download button to access the 09021646919 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09021,
or try a keyword search, such as Headers and Edge Type Connectors
