Part Image

09021646922 - HARTING

Description: DIN B male straight 64pin, PL2

Download 09021646922 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

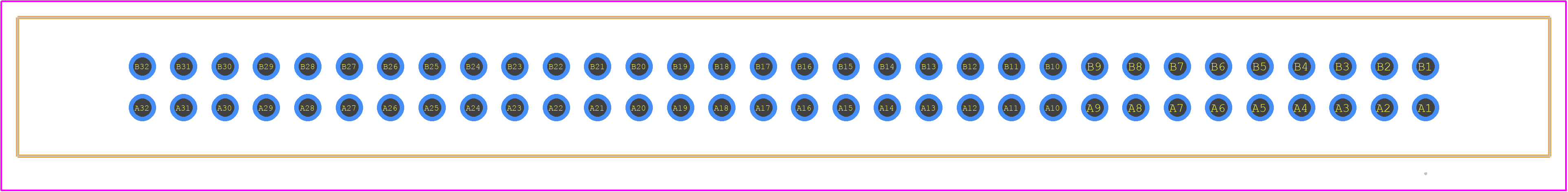

09021646922 - HARTING PCB footprint - Other - Other - 09021646922-2
click to zoom
3D Models
09021646922 - HARTING  - 3D model - Other - 09021646922-2
click to zoom

09021646922 Details

  • Manufacturer Part Number:

    09021646922

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7.9

  • Additional Feature:

    STANDARD: DIN 41612

  • Body Breadth:

    0.339 inch

  • Body Depth:

    0.512 inch

  • Body Length:

    3.701 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    400 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .9452 N

  • Insulation Resistance:

    1000000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .9452 N

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09021646922 Overview

Use the download button to access the 09021646922 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09021, or try a keyword search, such as Headers and Edge Type Connectors
