The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque value to ensure reliable connections and prevent damage to the connector.
The 09022326825 connector is designed for industrial applications and can be used in outdoor environments, but it's essential to ensure proper sealing and protection against moisture and environmental factors. HARTING recommends using additional sealing measures, such as potting or conformal coating, to ensure the connector's reliability in harsh outdoor conditions.
The 09022326825 connector is designed to withstand moderate vibrations, but it's essential to ensure that the connector is properly secured and mounted to prevent damage or disconnection. HARTING recommends following the recommended mounting and installation guidelines to ensure the connector's reliability in high-vibration applications.
The 09022326825 connector is part of the HARTING Han series, which is a modular connector system. The connector is compatible with other Han series connectors, but it's essential to ensure that the mating connectors have the same configuration and keying to ensure proper mating and reliable connections.
The maximum operating temperature of the 09022326825 connector is 125°C, but it's essential to note that the connector's performance and reliability may be affected at higher temperatures. HARTING recommends following the recommended operating temperature range to ensure the connector's reliability and performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09022326825 Overview

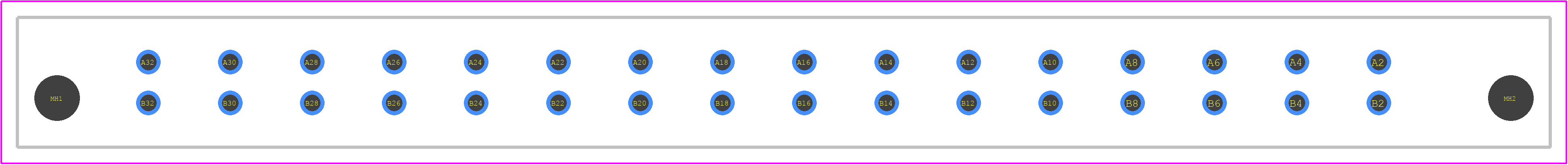

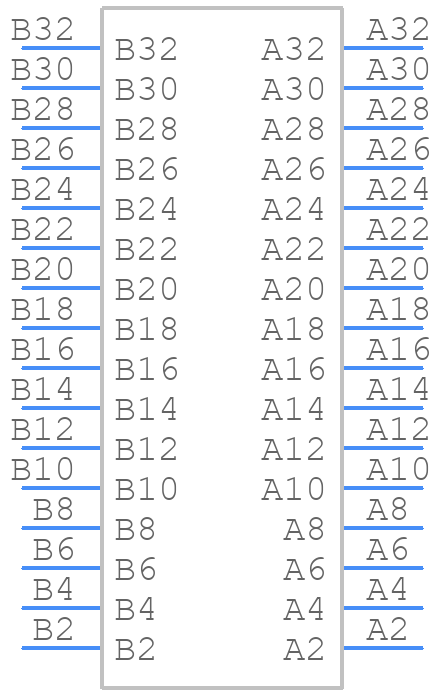

Use the download button to access the 09022326825 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09022,
or try a keyword search, such as Headers and Edge Type Connectors
