09022642850 - HARTING

Description: DIN B female straight 64pin, press-in 4.5mm tails, PL1

Download 09022642850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09022642850 - HARTING - PCB symbol
click to zoom

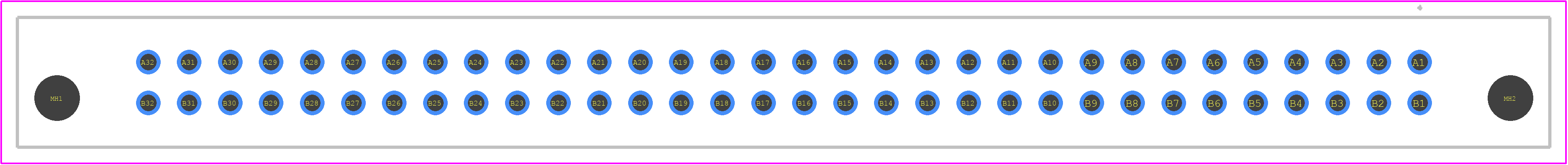

PCB Footprints
09022642850 - HARTING PCB footprint - Other - Other - 09022642850
click to zoom
3D Models
09022642850 - HARTING - 3D model - Other - 09022642850
click to zoom

09022642850 Details

  • Manufacturer Part Number:

    09022642850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    64

09022642850 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09022642850 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 09022642850 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • The mating cycle of the 09022642850 connector is 500 cycles, according to HARTING's specifications.
  • Yes, the 09022642850 connector is designed to withstand high-vibration applications, with a vibration resistance of 10g (sinusoidal) and 20g (random) according to IEC 61373 Cat. 2.
  • Yes, the 09022642850 connector is part of the HARTING Han series, which is a modular connector system. It is compatible with other Han series connectors and accessories.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09022642850 Overview

Use the download button to access the 09022642850 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09022, or try a keyword search, such as Headers and Edge Type Connectors
