09022646421 - HARTING

Description: DIN B female straight 64pin, 13mm tails, PL2

Download 09022646421 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09022646421 - HARTING - PCB symbol
click to zoom
PCB Footprints

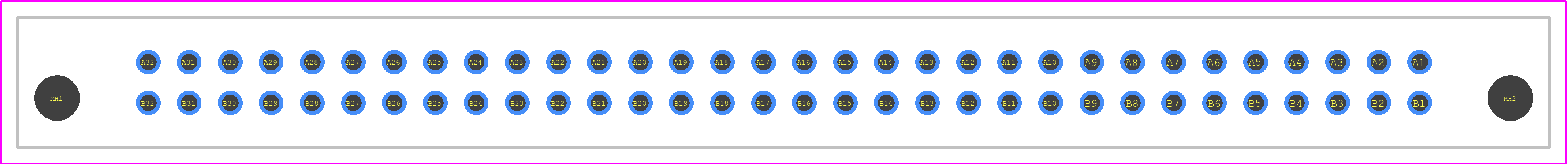

09022646421 - HARTING PCB footprint - Other - Other - 09022646421
click to zoom
3D Models
09022646421 - HARTING - 3D model - Other - 09022646421
click to zoom

09022646421 Details

  • Manufacturer Part Number:

    09022646421

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

09022646421 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the manufacturer's guidelines to ensure reliable connections.
  • Yes, the 09022646421 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured and mounted to prevent damage or disconnection.
  • The 09022646421 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow the manufacturer's guidelines for sealing and protection to ensure the connector's integrity.
  • The 09022646421 connector is designed to be compatible with other HARTING connectors. While it may be possible to use it with other manufacturers' mating connectors, it's recommended to verify compatibility and consult with the manufacturer to ensure reliable connections.
  • The 09022646421 connector has an operating temperature range of -40°C to 125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
