09031326941 - HARTING

Description: DIN C male angled, 32pin, PL2 (rows a,c odd columns loaded)

Download 09031326941 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

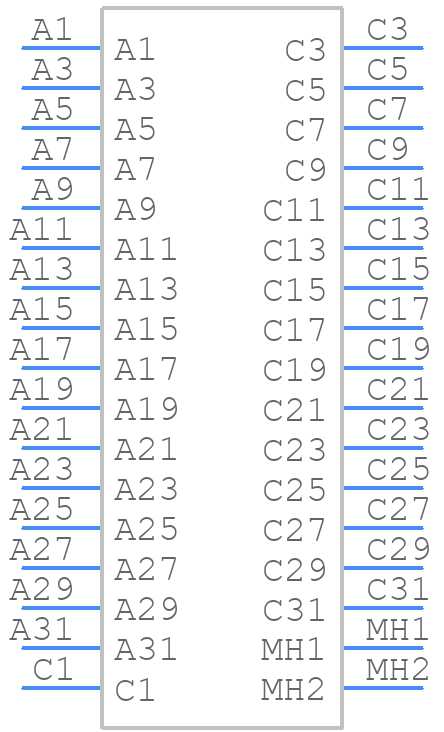

09031326941 - HARTING - PCB symbol
click to zoom
PCB Footprints

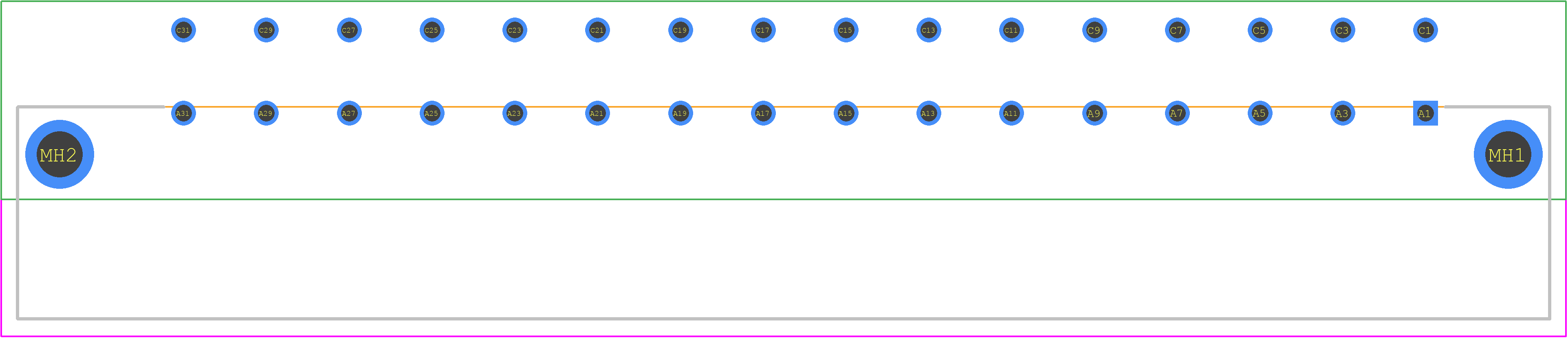

09031326941 - HARTING PCB footprint - Other - Other - 09031326941-1
click to zoom
3D Models
09031326941 - HARTING - 3D model - Other - 09031326941-1
click to zoom

09031326941 Details

  • Manufacturer Part Number:

    09031326941

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09031326941 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09031326941 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09031326941 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09031326941 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and aerospace industries.
  • The maximum operating temperature of the 09031326941 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09031326941 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
