09031962921 - HARTING

Description: DIN C male angled, 96pin, PL1

Download 09031962921 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

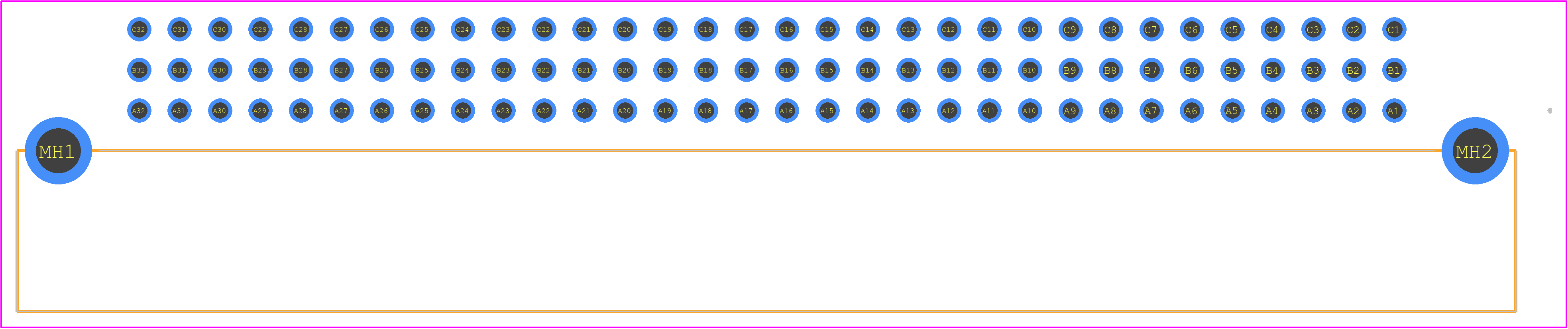

09031962921 - HARTING PCB footprint - Other - Other - 09031962921-3
click to zoom
3D Models
09031962921 - HARTING  - 3D model - Other - 09031962921-3
click to zoom

09031962921 Details

  • Manufacturer Part Number:

    09031962921

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Body Breadth:

    0.437 inch

  • Body Depth:

    0.709 inch

  • Body Length:

    3.701 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .9452 N

  • Insulation Resistance:

    1000000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B,C

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .9452 N

09031962921 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09031962921 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09031962921 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 2, which includes vibration testing.
  • Yes, the 09031962921 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity range of 5% to 95% RH.
  • Yes, the 09031962921 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for flexibility in design and assembly.
  • The maximum current rating of the 09031962921 connector is 40 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09031962921 Overview

Use the download button to access the 09031962921 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09031, or try a keyword search, such as Headers and Edge Type Connectors
