09031966919 - HARTING

Description: DIN C male angled, 96pin, PL2, THR/SMC

Download 09031966919 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09031966919 - HARTING - PCB symbol
click to zoom

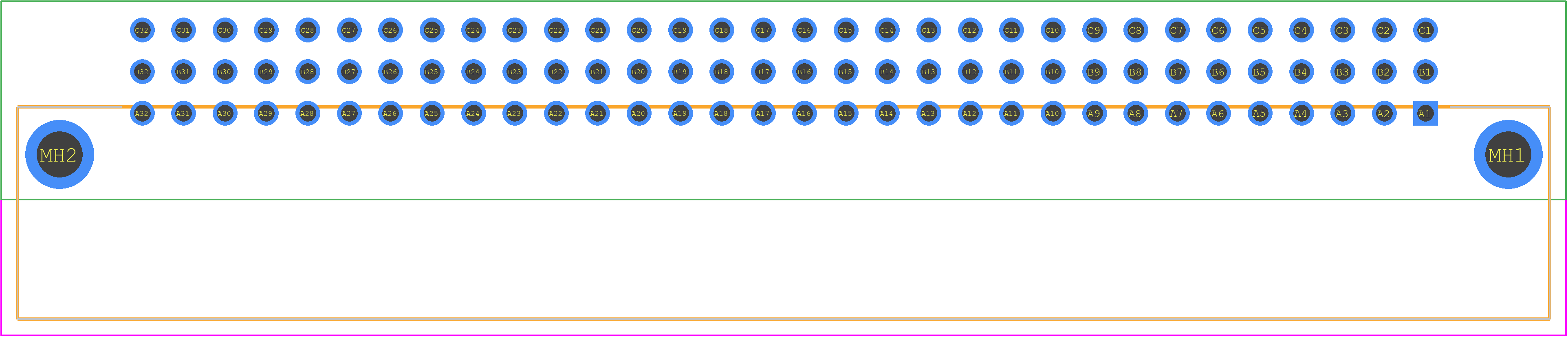

PCB Footprints
09031966919 - HARTING PCB footprint - Other - Other - 09031962919-1
click to zoom
3D Models
09031966919 - HARTING - 3D model - Other - 09031962919-1
click to zoom

09031966919 Details

  • Manufacturer Part Number:

    09031966919

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09031966919 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09031966919 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09031966919 connector is designed to withstand high-vibration environments and can operate reliably in applications with vibrations up to 10g.
  • Yes, the 09031966919 connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 125°C and humidity up to 95% RH.
  • Yes, the 09031966919 connector is compatible with other HARTING connectors, including the Han series, and can be used in conjunction with them.
  • The maximum current rating for the 09031966919 connector is 10A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09031966919 Overview

Use the download button to access the 09031966919 schematic symbol, PCB footprint, and 3D model.
