09032246850 - HARTING

Description: DIN M24+8 female straight, press-in 4.5mm tails, PL2

Download 09032246850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

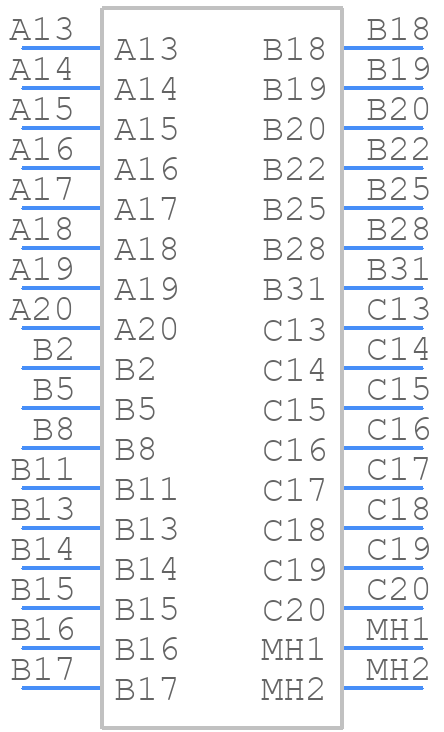

09032246850 - HARTING - PCB symbol
click to zoom
PCB Footprints

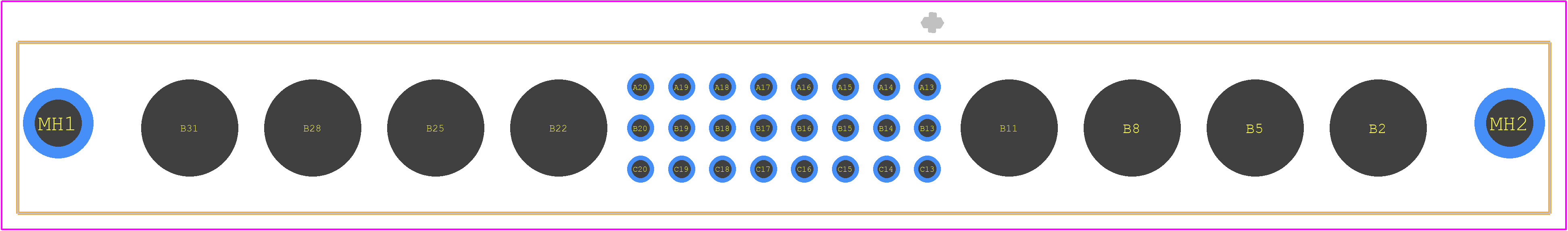

09032246850 - HARTING PCB footprint - Other - Other - 09032246850
click to zoom
3D Models
09032246850 - HARTING - 3D model - Other - 09032246850
click to zoom

09032246850 Details

  • Manufacturer Part Number:

    09032246850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, 8 CAVITIES FOR SPECIAL CONTACTS

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

09032246850 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09032246850 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032246850 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09032246850 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other environments where vibration is a concern.
  • Yes, the 09032246850 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
  • The 09032246850 connector has a maximum operating temperature of 125°C (257°F), making it suitable for use in high-temperature applications.
