09032322824 - HARTING

Description: DIN C female straight 32pin, 2.9mm tails, PL1 (rows a,c even columns loaded)

Download 09032322824 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

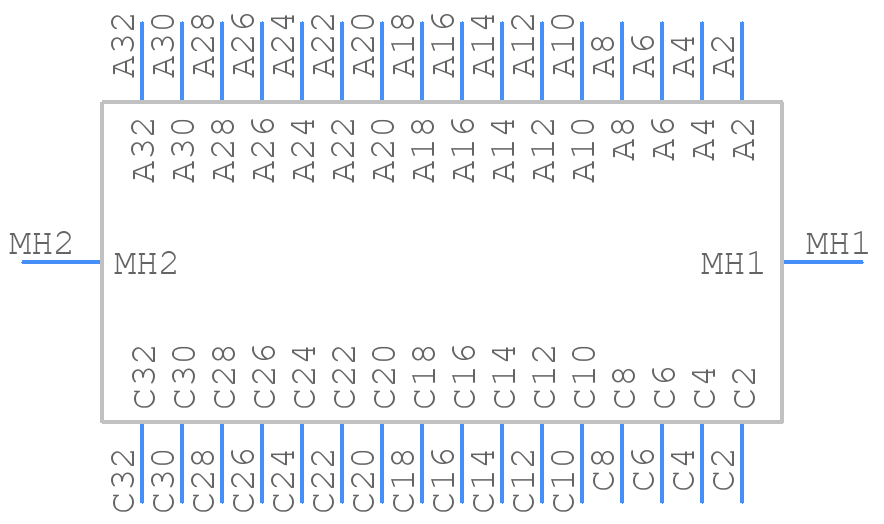

Symbol
09032322824 - HARTING - PCB symbol
click to zoom

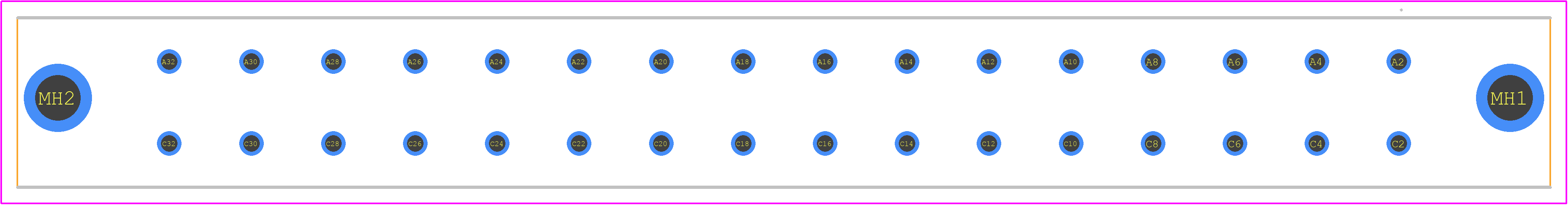

PCB Footprints
09032322824 - HARTING PCB footprint - Other - Other - 09032322824-2
click to zoom
3D Models
09032322824 - HARTING - 3D model - Other - 09032322824-2
click to zoom

09032322824 Details

  • Manufacturer Part Number:

    09032322824

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    7

  • Connector Type:

    BOARD EURO CONNECTOR

09032322824 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032322824 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032322824 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 09032322824 connector is designed for outdoor use and can withstand harsh environmental conditions, including temperatures from -40°C to +125°C, and IP67 ingress protection.
  • The maximum current rating for the 09032322824 connector is 10A per contact, depending on the specific application and environmental conditions.
  • Yes, the 09032322824 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and mating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032322824 Overview

Use the download button to access the 09032322824 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
