09032322850 - HARTING

Description: DIN C female straight 32pin, press-in 4.5mm tails, PL1 (rows a,c even columns loaded)

Download 09032322850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

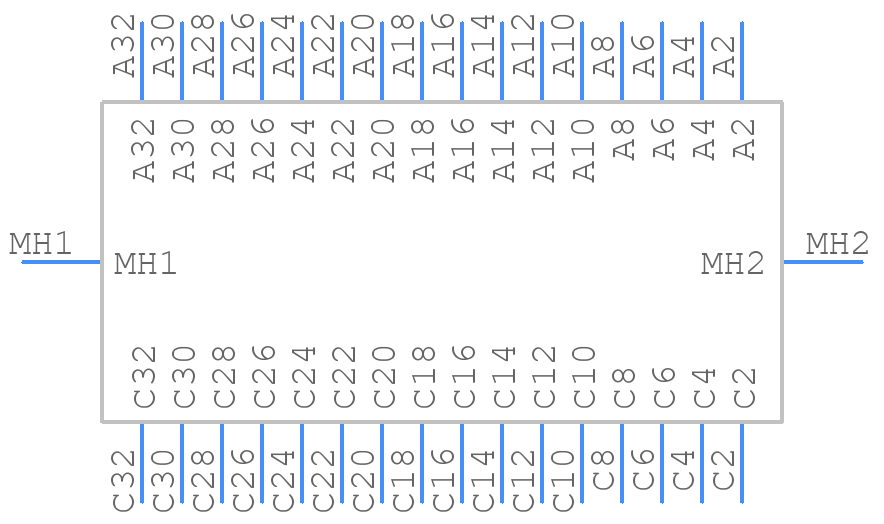

Symbol
09032322850 - HARTING - PCB symbol
click to zoom

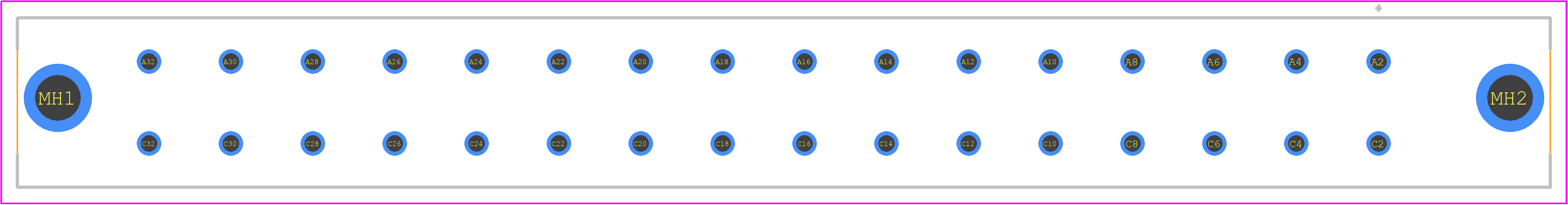

PCB Footprints
09032322850 - HARTING PCB footprint - Other - Other - 09032322850-2_1
click to zoom
3D Models
09032322850 - HARTING - 3D model - Other - 09032322850-2_1
click to zoom

09032322850 Details

  • Manufacturer Part Number:

    09032322850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09032322850 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032322850 connector onto the PCB is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
  • The 09032322850 connector is designed to meet the requirements of IEC 61984, which includes vibration testing. However, it's crucial to evaluate the specific vibration profile of your application and consult with HARTING's technical support to ensure the connector meets your requirements.
  • The 09032322850 connector is designed to operate in a temperature range of -40°C to +125°C and can withstand humid environments. However, it's essential to review the specific environmental requirements of your application and consult with HARTING's technical support to ensure the connector meets your needs.
  • The 09032322850 connector is part of the HARTING Han series, which is designed to be compatible with other Han series products. However, compatibility with third-party components should be verified through testing or consultation with HARTING's technical support.
  • The 09032322850 connector is designed for a minimum of 500 mating cycles, but this can vary depending on the specific application and environmental conditions. It's recommended to consult HARTING's application notes or technical support for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032322850 Overview

Use the download button to access the 09032322850 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
