Part Image

09032326411 - HARTING

Description: DIN C female straight 32pin, press-in 16.2mm tails, PL2 (posts PL3 Au) (rows a,c even rows loaded)

Download 09032326411 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

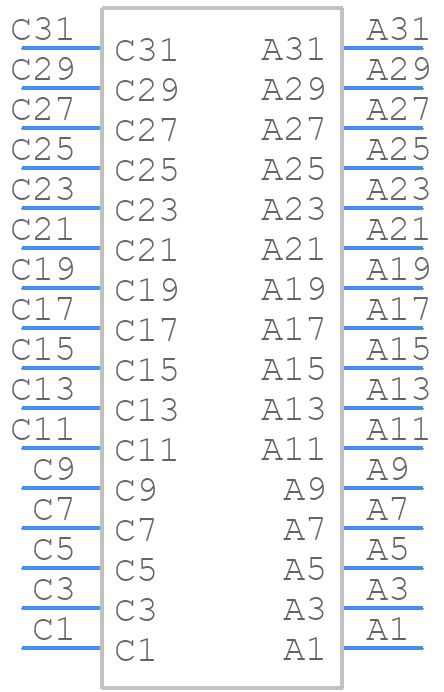

Symbol
09032326411 - HARTING - PCB symbol
click to zoom

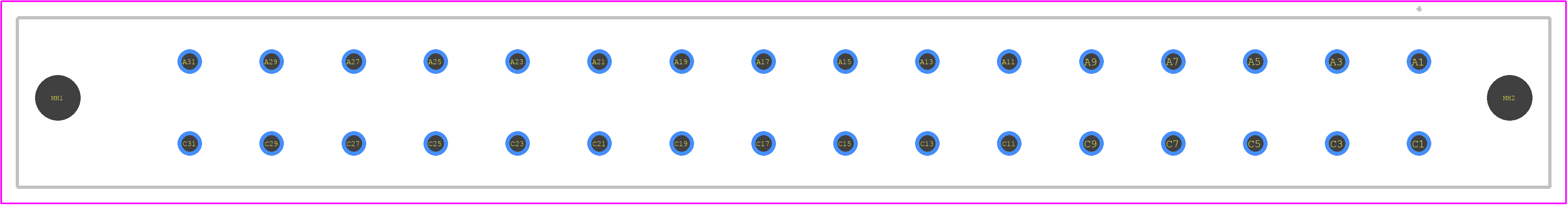

PCB Footprints
09032326411 - HARTING PCB footprint - Other - Other - 09032326411-40
click to zoom
3D Models
09032326411 - HARTING - 3D model - Other - 09032326411-40
click to zoom

09032326411 Details

  • Manufacturer Part Number:

    09032326411

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032326411 Overview

Use the download button to access the 09032326411 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
