09032326850 - HARTING

Description: DIN C female straight 32pin, press-in 4.5mm tails, PL2 (rows a,c even columns loaded)

Download 09032326850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

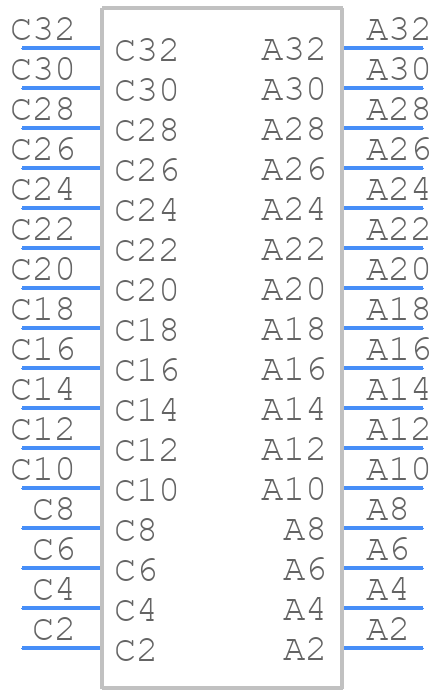

Symbol
09032326850 - HARTING - PCB symbol
click to zoom

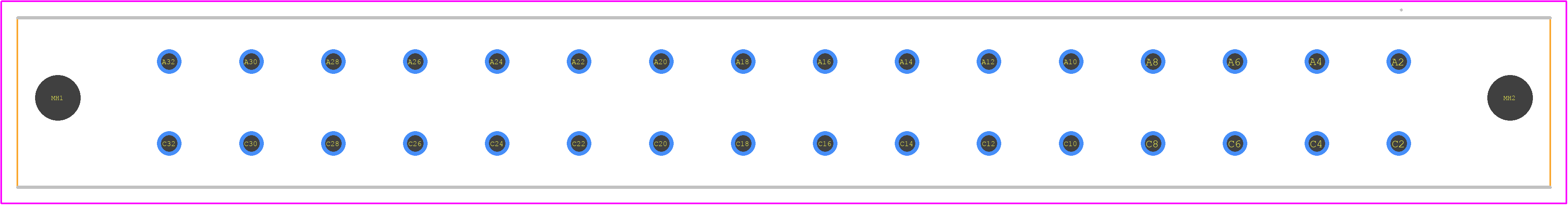

PCB Footprints
09032326850 - HARTING PCB footprint - Other - Other - 09032326850-20
click to zoom
3D Models
09032326850 - HARTING - 3D model - Other - 09032326850-20
click to zoom

09032326850 Details

  • Manufacturer Part Number:

    09032326850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

09032326850 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 09032326850 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032326850 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09032326850 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • Yes, the 09032326850 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The 09032326850 connector has a maximum operating temperature of 125°C (257°F), making it suitable for use in high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032326850 Overview

Use the download button to access the 09032326850 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
