09032426850 - HARTING

Description: DIN M42+6 female straight, press-in 4.5mm tails, PL2

Download 09032426850 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

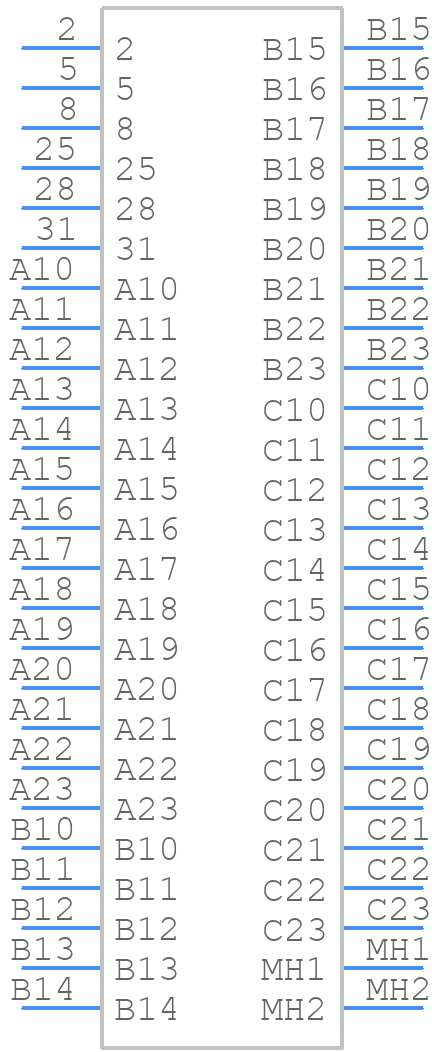

Symbol
09032426850 - HARTING - PCB symbol
click to zoom

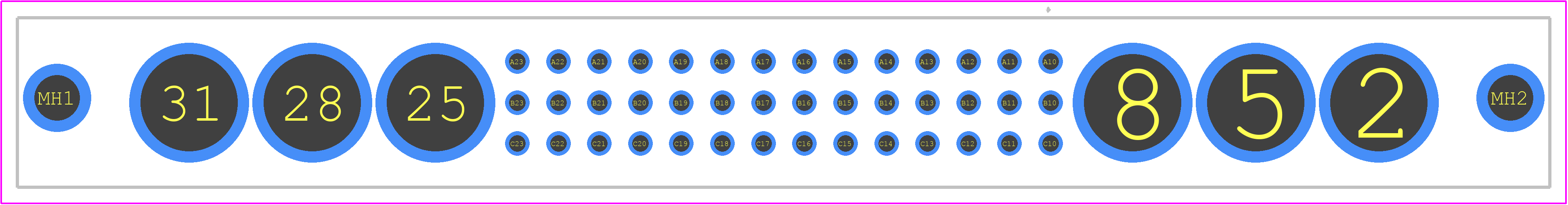

PCB Footprints
09032426850 - HARTING PCB footprint - Other - Other - 09032426850-1
click to zoom
3D Models
09032426850 - HARTING - 3D model - Other - 09032426850-1
click to zoom

09032426850 Details

  • Manufacturer Part Number:

    09032426850

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612, 6 CAVITIES FOR SPECIAL CONTACTS

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    42

  • UL Flammability Code:

    94V-0

09032426850 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09032426850 connector is designed for outdoor use and meets the IP67 rating, making it resistant to dust and water ingress.
  • Yes, the connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration.
  • The operating temperature range of the 09032426850 connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09032426850 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy mating and integration.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032426850 Overview

Use the download button to access the 09032426850 schematic symbol, PCB footprint, and 3D model.
