09032646850222 - HARTING

Description: Harting DIN 41 612 Series 64 Way 2.54mm Pitch, Straight DIN 41612 Connector, Socket

Download 09032646850222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032646850222 - HARTING - PCB symbol
click to zoom
PCB Footprints

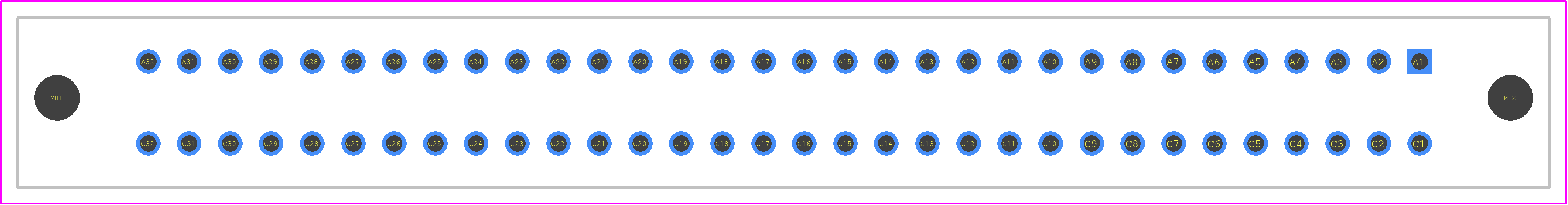

09032646850222 - HARTING PCB footprint - Other - Other - 09032646850222-10
click to zoom
3D Models
09032646850222 - HARTING - 3D model - Other - 09032646850222-10
click to zoom

09032646850222 Details

  • Manufacturer Part Number:

    09032646850222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    64

09032646850222 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032646850222 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032646850222 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09032646850222 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • The maximum operating temperature of the 09032646850222 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09032646850222 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration and interchangeability.
