09032962825222 - HARTING

Description: DIN C female straight 96pin, 4.5mm tails, PL1, NFF F1-I2

Download 09032962825222 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032962825222 - HARTING - PCB symbol
click to zoom
PCB Footprints

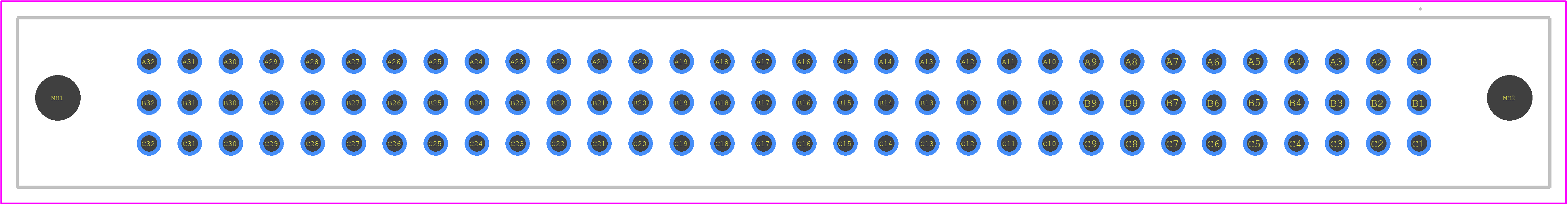

09032962825222 - HARTING PCB footprint - Other - Other - 09032962825222-10
click to zoom
3D Models
09032962825222 - HARTING - 3D model - Other - 09032962825222-10
click to zoom

09032962825222 Details

  • Manufacturer Part Number:

    09032962825222

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09032962825222 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032962825222 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032962825222 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 09032962825222 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and humidity resistance up to 95% RH (according to IEC 60068-2-78).
  • The 09032962825222 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • Yes, the 09032962825222 connector is designed to be compatible with other HARTING connectors and products, including the Han-Modular series.
