Part Image

09032962845 - HARTING

Description: DIN C female straight 96pin, 4.5mm tails, kinked pins, PL1

Download 09032962845 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09032962845 - HARTING - PCB symbol
click to zoom
PCB Footprints

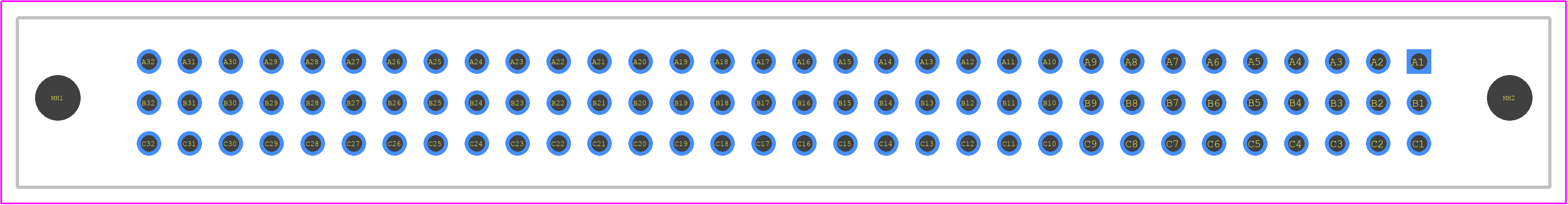

09032962845 - HARTING PCB footprint - Other - Other - 09032962845-10
click to zoom
3D Models
09032962845 - HARTING - 3D model - Other - 09032962845-10
click to zoom

09032962845 Details

  • Manufacturer Part Number:

    09032962845

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: DIN 41612

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09032962845 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09032962845 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09032962845 connector is designed to withstand high-vibration applications, with a tested vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 09032962845 connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance up to 95% RH (according to IEC 60068-2-78).
  • The 09032962845 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09032962845 connector is designed to be compatible with other HARTING connectors and some third-party connectors, but compatibility should be verified before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09032962845 Overview

Use the download button to access the 09032962845 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09032, or try a keyword search, such as Headers and Edge Type Connectors
